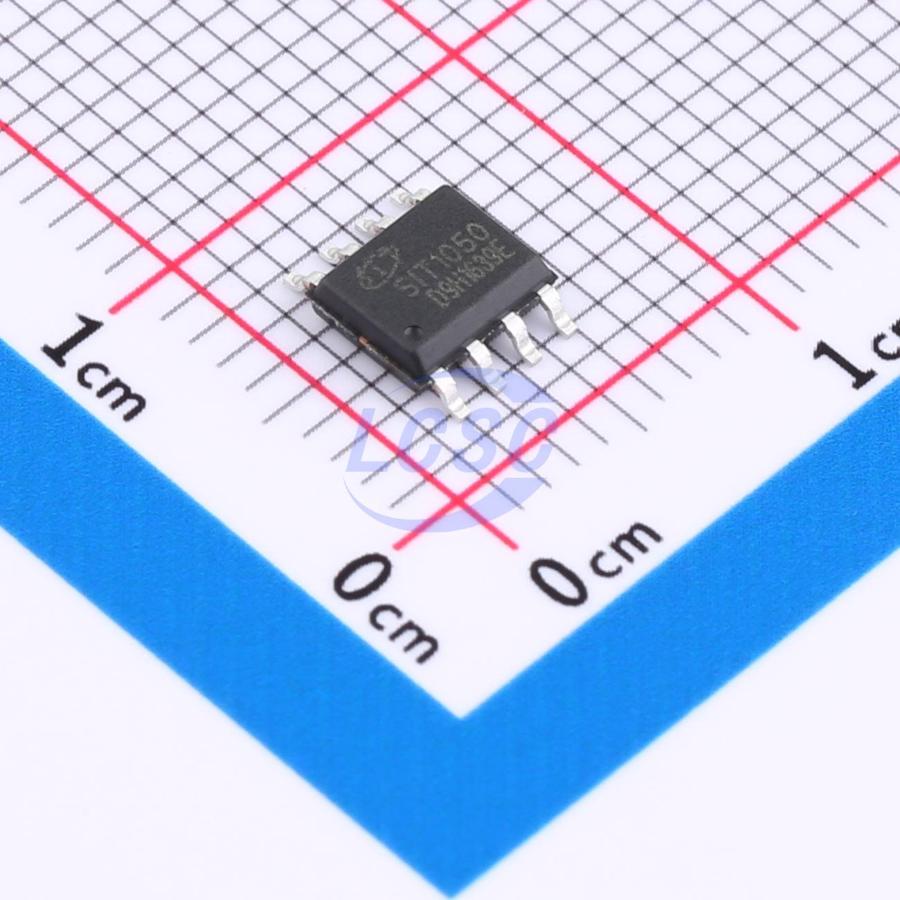

Трансивер шины CAN питание 5В, ±40В 1МБ/с
У поставщика
ПроизводительSitcore
КатегорияИнтерфейсы CAN
У поставщиков
72 шт.
Норм. уп.: 2500
Цены поставщиков
Склад 13
В наличии:72 шт
Срок поставки: до недели
Норм. уп.: 2500
Минимальная партия: 20 шт
| Кол-во, шт. | Цена, ₽ |
|---|---|
| от 1 | 35,06 |
| от 57 | 31,98 |
| от 114 | 29,46 |
| от 228 | 27,55 |
| от 455 | 26,13 |
Описание
Трансивер шины CAN от Sitcore работает при питании 5В и поддерживает скорость передачи до 1 Мбит/с. Выдерживает напряжение на шине до ±40 В, выпускается в компактном корпусе SOIC8. Подходит для построения высокоскоростных линий связи в промышленной автоматике и автомобильной электронике.
Технические характеристики
| Корпус | SOIC-8 |
| Тип монтажа | SMD |
| Кол-во выводов | 8 |
| Loop delay1 max | 190ns |
| Loop delay1 min | 90ns |
| Loop delay2 max | 190ns |
| Loop delay2 min | 90ns |
| Txd off current | 1µA |
| Макс. напр. пит. | 5.5V |
| Мин. напр. пит. | 4.5V |
| Can bus voltage max | +40V |
| Can bus voltage min | -40V |
| Welding temperature | 300°C |
| Input resistance max | 40kΩ |
| Input resistance min | 15kΩ |
| Input resistance typ | 30kΩ |
| Rxd signal fall time | 8ns |
| Rxd signal rise time | 8ns |
| Continuous power dip8 | 700mW |
| Continuous power sop8 | 400mW |
| Max transmission rate | 1Mbaud |
| Hysteresis voltage min | 100mV |
| Hysteresis voltage typ | 125mV |
| Common mode voltage max | 12V |
| Common mode voltage min | -12V |
| Макс. темп. хр. | 150°C |
| Мин. темп. хр. | -55°C |
| Тип упаковки | Tape and Reel (лента в катушке) |
| Bus dominant timeout max | 700µs |
| Bus dominant timeout min | 300µs |
| Bus dominant timeout typ | 450µs |
| Supply current silent max | 10mA |
| Supply current silent typ | 6mA |
| Input capacitance canh canl | 13pF |
| Supply current dominant max | 70mA |
| Supply current dominant typ | 50mA |
| Абс. макс. напряжение питания | +6V |
| Supply voltage absolute min | -0.3V |
| Bus differential voltage max | 3.0V |
| Bus differential voltage min | 1.5V |
| Low level output voltage max | 0.4V |
| Low level output voltage min | 0.2V |
| Recessive output current max | 2.5mA |
| Recessive output current min | -2.0mA |
| Reference output voltage max | VCC |
| Reference output voltage min | 0.4V |
| Reference output voltage typ | 0.6V |
| Supply current recessive max | 10mA |
| Supply current recessive typ | 6mA |
| Описание (англ.) | 5V,±40V BUS,1Mbps High Speed CAN transceiver |
| High level output voltage max | 4.6V |
| High level output voltage min | 4V |
| Input resistance matching max | 3% |
| Input resistance matching min | -3% |
| Shutdown junction temperature | 160°C |
| Common mode output voltage max | 3V |
| Common mode output voltage min | 2V |
| Common mode output voltage typ | 2.5V |
| Differential input capacitance | 5pF |
| Enable time silent to dominant | 1µs |
| Power off bus input current max | 250µA |
| Power off bus input current min | 165µA |
| Txd low level input current max | -10µA |
| Txd low level input current min | -50µA |
| Txd low level input voltage max | 0.8V |
| Txd low level input voltage min | -0.3V |
| Bus recessive output voltage max | 3V |
| Bus recessive output voltage min | 2V |
| Bus recessive output voltage typ | 2.5V |
| Canh dominant output voltage max | 4.5V |
| Canh dominant output voltage min | 2.9V |
| Canh dominant output voltage typ | 3.4V |
| Canl dominant output voltage max | 1.5V |
| Canl dominant output voltage min | 0.8V |
| Transmitter voltage symmetry max | 1.1V |
| Transmitter voltage symmetry min | 0.9V |
| Txd high level input current max | 2µA |
| Txd high level input current min | -2µA |
| Txd high level input voltage max | VCC+0.3V |
| Txd high level input voltage min | 2V |
| Virtual junction temperature max | 125°C |
| Virtual junction temperature min | -40°C |
| Differential input resistance max | 80kΩ |
| Differential input resistance min | 30kΩ |
| Propagation delay tphl driver max | 90ns |
| Propagation delay tphl driver min | 25ns |
| Propagation delay tphl driver typ | 45ns |
| Propagation delay tplh driver max | 120ns |
| Propagation delay tplh driver min | 25ns |
| Propagation delay tplh driver typ | 65ns |
| Propagation delay tphl receiver max | 90ns |
| Propagation delay tphl receiver min | 45ns |
| Propagation delay tphl receiver typ | 70ns |
| Propagation delay tplh receiver max | 130ns |
| Propagation delay tplh receiver min | 60ns |
| Propagation delay tplh receiver typ | 100ns |
| Differential output signal fall time | 50ns |
| Differential output signal rise time | 25ns |
| Peak to peak common mode output voltage | 30mV |
| Short circuit output current canh 12v max | 1mA |
| Short circuit output current canh 12v min | 0.36mA |
| Short circuit output current canl 12v max | 105mA |
| Short circuit output current canl 12v min | 71mA |
| Transmitter dominant voltage symmetry max | 400mV |
| Transmitter dominant voltage symmetry min | -400mV |
| Negative going input threshold voltage min | 500mV |
| Negative going input threshold voltage typ | 650mV |
| Positive going input threshold voltage min | 800mV |
| Positive going input threshold voltage typ | 900mV |
| Bus dominant differential output voltage max | 3V |
| Bus dominant differential output voltage min | 1.5V |
| Short circuit output current canh neg12v max | -72mA |
| Short circuit output current canh neg12v min | -105mA |
| Short circuit output current canl neg12v max | 0.5mA |
| Short circuit output current canl neg12v min | -1mA |
| Bus recessive differential output voltage max | 0.012V |
| Bus recessive differential output voltage min | -0.012V |
| Bus recessive differential output voltage no load max | 0.05V |
| Bus recessive differential output voltage no load min | -0.5V |
