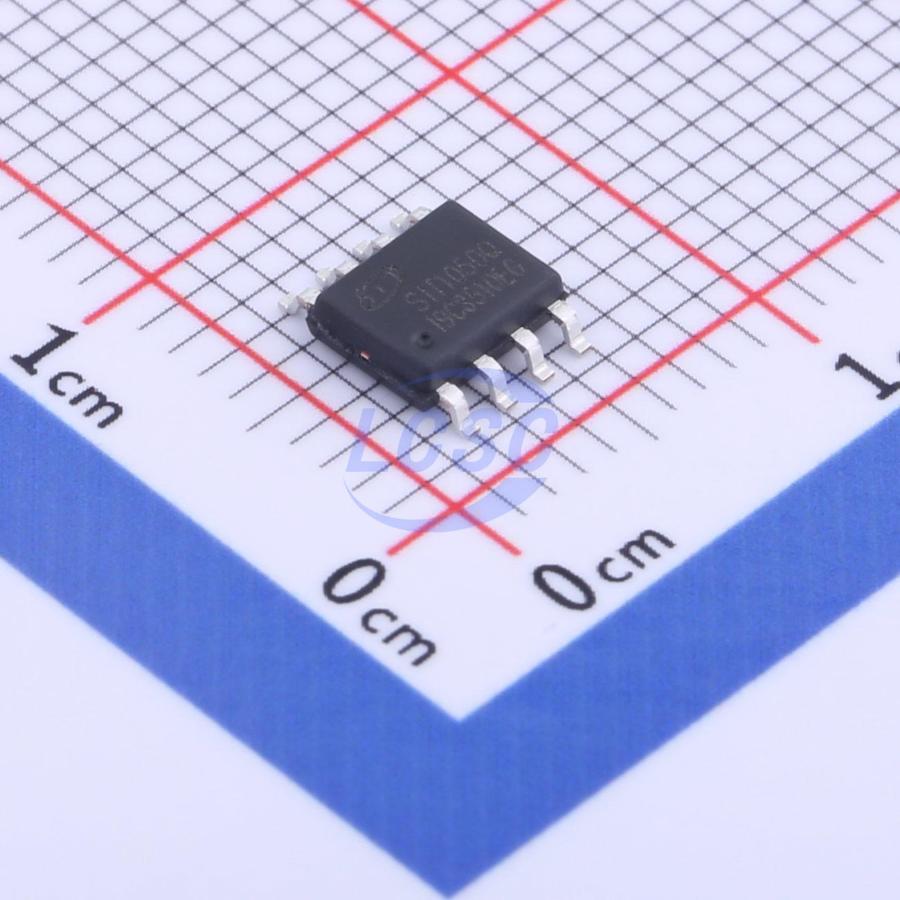

Интерфейс шины CAN SOP-8 SIT1050QT
У поставщика
ПроизводительSitcore
КатегорияИнтерфейсы CAN
У поставщиков
992 шт.
Норм. уп.: 1000
Цены поставщиков
Склад 13
В наличии:992 шт
Срок поставки: до недели
Норм. уп.: 1000
Минимальная партия: 22 шт
| Кол-во, шт. | Цена, ₽ |
|---|---|
| от 1 | 33,44 |
| от 22 | 32,42 |
| от 43 | 30,98 |
| от 85 | 28,96 |
| от 170 | 26,71 |
Описание
Микросхема SIT1050QT от Sitcore — это трансивер шины CAN. Работает при напряжении 5 В, поддерживает скорость передачи до 1 Мбит/с и имеет защиту от неисправностей ±40 В. Выпускается в компактном корпусе SOIC-8. Применяется в промышленной автоматике и автомобильной электронике.
Технические характеристики
| ЭСР HBM | ±8kV |
| Корпус | SOIC-8 |
| Особенности | over-temperature protection, over-current protection, dominant timeout, silent mode, unpowered node no bus interference, high EMI immunity, lead-free |
| Тип монтажа | SMD |
| Кол-во выводов | 8 |
| Стандарты | ISO 11898, AEC-Q100 |
| Описание | 5V supply, ±40V bus fault protection, 1Mbps high-speed CAN transceiver |
| Артикул | SIT1050QT |
| Txd vih max | VCC+0.3V |
| Txd vih min | 2V |
| Txd vil max | 0.8V |
| Txd vil min | -0.3V |
| Производитель | SIT (芯力特) |
| Max data rate | 1Mbps |
| Node count min | 110 |
| Loop delay1 min | 90ns |
| Loop delay1 typ | 230ns |
| Loop delay2 min | 90ns |
| Loop delay2 typ | 230ns |
| Receiver voh max | 4.6V |
| Receiver voh min | 4V |
| Receiver vol max | 0.4V |
| Receiver vol min | 0.2V |
| Макс. темп. перехода | 160°C |
| Rxd fall time max | 8ns |
| Rxd rise time max | 8ns |
| Bus io voltage max | 40V |
| Bus io voltage min | -40V |
| Макс. темп. пайки | 300°C |
| Макс. напр. пит. | 5.25V |
| Мин. напр. пит. | 4.75V |
| Txd off current max | 1uA |
| Dominant timeout max | 700us |
| Dominant timeout min | 300us |
| Dominant timeout typ | 450us |
| Input resistance max | 45kΩ |
| Input resistance min | 15kΩ |
| Input resistance typ | 30kΩ |
| Sop8 dimension a max | 1.70mm |
| Sop8 dimension a min | 1.50mm |
| Sop8 dimension a typ | 1.60mm |
| Sop8 dimension b max | 0.455mm |
| Sop8 dimension b min | 0.355mm |
| Sop8 dimension b typ | 0.400mm |
| Sop8 dimension c max | 0.253mm |
| Sop8 dimension c min | 0.153mm |
| Sop8 dimension c typ | 0.203mm |
| Sop8 dimension d max | 5.00mm |
| Sop8 dimension d min | 4.800mm |
| Sop8 dimension d typ | 4.900mm |
| Sop8 dimension e max | 3.980mm |
| Sop8 dimension e min | 3.780mm |
| Sop8 dimension e typ | 3.880mm |
| Sop8 dimension l max | 0.80mm |
| Sop8 dimension l min | 0.40mm |
| Sop8 dimension l typ | 0.60mm |
| Sop8 dimension a1 max | 0.2mm |
| Sop8 dimension a1 min | 0.1mm |
| Sop8 dimension a1 typ | 0.15mm |
| Sop8 dimension a2 max | 1.55mm |
| Sop8 dimension a2 min | 1.35mm |
| Sop8 dimension a2 typ | 1.45mm |
| Sop8 dimension e1 max | 6.200mm |
| Sop8 dimension e1 min | 5.800mm |
| Sop8 dimension e1 typ | 6.000mm |
| Sop8 dimension e pitch | 1.270mm |
| Макс. темп. окр. среды | 125°C |
| Темп. окружающей среды мин. | -40°C |
| Receiver hysteresis min | 80mV |
| Receiver hysteresis typ | 100mV |
| Макс. темп. хр. | 150°C |
| Мин. темп. хр. | -55°C |
| Vref output current max | 50uA |
| Vref output current min | -50uA |
| Vref output voltage min | 0.4VCC |
| Vref output voltage typ | 0.6VCC |
| Тип упаковки | Tape and Reel (лента в катушке) |
| Sop8 dimension theta max | -6° |
| Sop8 dimension theta min | -2° |
| Sop8 dimension theta typ | -4° |
| Input resistance matching | ±3% |
| Txd low input current max | -10uA |
| Txd low input current min | -50uA |
| Txd high input current max | 2uA |
| Txd high input current min | -2uA |
| Dominant supply current max | 70mA |
| Dominant supply current typ | 38mA |
| Output voltage symmetry max | 1.1VCC |
| Output voltage symmetry min | 0.9VCC |
| Абс. макс. напряжение питания | 6V |
| Supply voltage absolute min | -0.3V |
| Bus differential voltage max | 3.0V |
| Bus differential voltage min | 1.5V |
| Recessive output current max | 2.5mA |
| Recessive output current min | -2.0mA |
| Recessive supply current max | 10mA |
| Recessive supply current typ | 3.6mA |
| Transmitter vod dominant max | 3V |
| Transmitter vod dominant min | 1.5V |
| Описание (англ.) | CAN Transceiver, 1Mbps, 5V, ±40V Fault Prot, Standby |
| Common mode voltage range max | 12V |
| Common mode voltage range min | -12V |
| Transmitter vod recessive max | 0.012V |
| Transmitter vod recessive min | -0.012V |
| Common mode output voltage max | 3V |
| Common mode output voltage min | 2V |
| Common mode output voltage typ | 2.5V |
| Differential input capacitance | 10pF |
| Silent mode supply current max | 10mA |
| Silent mode supply current typ | 3.6mA |
| Power down bus input current max | 20uA |
| Power down bus input current min | 3uA |
| Differential input resistance max | 90kΩ |
| Differential input resistance min | 30kΩ |
| Differential output fall time max | 50ns |
| Differential output rise time max | 80ns |
| Propagation delay high to low max | 90ns |
| Propagation delay high to low min | 20ns |
| Propagation delay high to low typ | 45ns |
| Propagation delay low to high max | 150ns |
| Propagation delay low to high min | 25ns |
| Propagation delay low to high typ | 90ns |
| Enable time listen to dominant max | 1us |
| Input capacitance canh canl to gnd | 18pF |
| Thermal shutdown junction temp typ | 160°C |
| Common mode output voltage delta max | 30mV |
| Receiver negative input threshold min | 500mV |
| Receiver negative input threshold typ | 650mV |
| Receiver positive input threshold min | 750mV |
| Receiver positive input threshold typ | 900mV |
| Transmitter canh voltage dominant max | 4.5V |
| Transmitter canh voltage dominant min | 2.9V |
| Transmitter canh voltage dominant typ | 3.4V |
| Transmitter canl voltage dominant max | 1.5V |
| Transmitter canl voltage dominant min | 0.8V |
| Transmitter vod recessive no load max | 0.05V |
| Transmitter vod recessive no load min | -0.5V |
| Short circuit output current canh neg max | -40mA |
| Short circuit output current canh neg min | -105mA |
| Short circuit output current canh pos max | 1mA |
| Short circuit output current canh pos min | 0.36mA |
| Short circuit output current canl neg max | 0.5mA |
| Short circuit output current canl neg min | -1mA |
| Short circuit output current canl pos max | 105mA |
| Short circuit output current canl pos min | 40mA |
| Receiver propagation delay high to low max | 100ns |
| Receiver propagation delay high to low min | 45ns |
| Receiver propagation delay high to low typ | 70ns |
| Receiver propagation delay low to high max | 140ns |
| Receiver propagation delay low to high min | 60ns |
| Receiver propagation delay low to high typ | 100ns |
