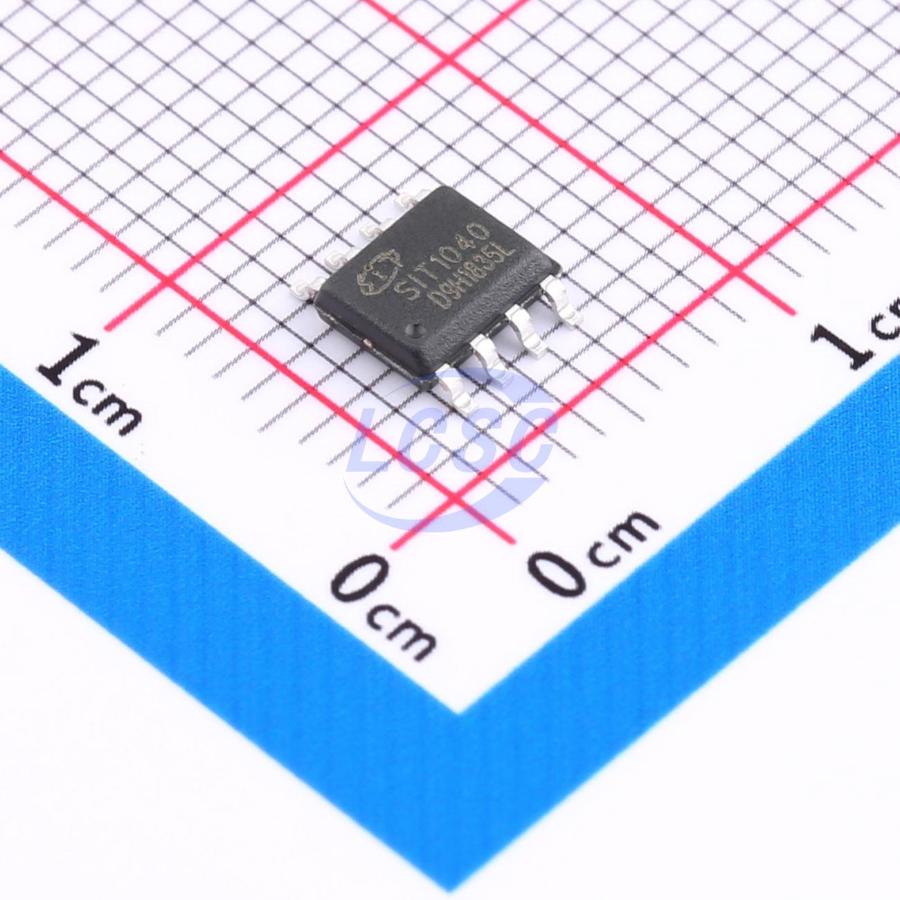

Трансивер SIT1040T / SO-8
У поставщика
ПроизводительSitcore
У поставщиков
6 038 шт.
Норм. уп.: 2500
Цены поставщиков
Склад 13
В наличии:6 038 шт
Срок поставки: до недели
Норм. уп.: 2500
Минимальная партия: 24 шт
| Кол-во, шт. | Цена, ₽ |
|---|---|
| от 1 | 29,38 |
| от 125 | 26,86 |
| от 250 | 24,86 |
| от 500 | 23,13 |
| от 999 | 21,97 |
Описание
Трансивер SIT1040T от Sitcore — это микросхема интерфейса CAN, выполненная в корпусе SO-8. Предназначена для обеспечения надежной передачи данных между микроконтроллером и шиной CAN в промышленных и автомобильных системах. Отличается высокой помехоустойчивостью и низким энергопотреблением, поддерживает защиту от короткого замыкания и перегрева.
Технические характеристики
| Корпус | SO-8 |
| Тип монтажа | SMD |
| Компонент | SIT1040T |
| Описание | 5V, ±40V BUS Protection, 1Mbps High Speed CAN transceiver |
| Loop delay1 max | 190ns |
| Loop delay1 min | 90ns |
| Loop delay2 max | 190ns |
| Loop delay2 min | 90ns |
| Макс. напр. пит. | 5.5V |
| Мин. напр. пит. | 4.5V |
| Nodes connected min | 110 |
| Txd current off max | 1uA |
| Input resistance max | 40kOhm |
| Input resistance min | 15kOhm |
| Input resistance typ | 30kOhm |
| Canh canl voltage max | 40V |
| Canh canl voltage min | -40V |
| Max transmission rate | 1Mbaud |
| Hysteresis voltage min | 100mV |
| Hysteresis voltage typ | 125mV |
| Макс. темп. хр. | 150C |
| Мин. темп. хр. | -55C |
| Welding temperature max | 300C |
| Тип упаковки | Tape and Reel (лента в катушке) |
| Bus dominant timeout max | 700us |
| Bus dominant timeout min | 300us |
| Bus dominant timeout typ | 450us |
| Rxd signal fall time max | 8ns |
| Rxd signal rise time max | 8ns |
| Bus wakeup filter time max | 5us |
| Bus wakeup filter time min | 0.7us |
| Dc voltage txd rxd stb max | VCC+0.3V |
| Dc voltage txd rxd stb min | -0.3V |
| Propagation delay tphl max | 90ns |
| Propagation delay tphl min | 25ns |
| Propagation delay tphl typ | 45ns |
| Propagation delay tplh max | 120ns |
| Propagation delay tplh min | 25ns |
| Propagation delay tplh typ | 65ns |
| Standby supply current max | 12uA |
| Standby supply current typ | 5uA |
| Dominant supply current max | 70mA |
| Dominant supply current typ | 50mA |
| Абс. макс. напряжение питания | 6V |
| Supply voltage absolute min | -0.3V |
| Bus differential voltage max | 3.0V |
| Bus differential voltage min | 1.5V |
| Low level output voltage max | 0.4V |
| Low level output voltage min | 0.2V |
| Recessive output current max | 2.5mA |
| Recessive output current min | -2.0mA |
| Recessive supply current max | 10mA |
| Recessive supply current typ | 6mA |
| Описание (англ.) | 1Mbps Transceiver SOP-8 CAN ICs ROHS |
| Common mode voltage range max | 12V |
| Common mode voltage range min | -12V |
| High level output voltage max | 4.6V |
| High level output voltage min | 4V |
| Input resistance matching max | 3% |
| Input resistance matching min | -3% |
| Common mode output voltage max | 3V |
| Common mode output voltage min | 2V |
| Common mode output voltage typ | 2.5V |
| Input capacitance to ground typ | 13pF |
| Power off bus input current max | 5uA |
| Txd low level input current max | -10uA |
| Txd low level input current min | -50uA |
| Txd low level input voltage max | 0.8V |
| Txd low level input voltage min | -0.3V |
| Bus recessive output voltage max | 3V |
| Bus recessive output voltage min | 2V |
| Bus recessive output voltage typ | 2.5V |
| Canh dominant output voltage max | 4.5V |
| Canh dominant output voltage min | 2.9V |
| Canh dominant output voltage typ | 3.4V |
| Canl dominant output voltage min | 0.8V |
| Canl dominant output voltage typ | 1.5V |
| Transmitter voltage symmetry max | 1.1VCC |
| Transmitter voltage symmetry min | 0.9VCC |
| Txd high level input current max | 2uA |
| Txd high level input current min | -2uA |
| Txd high level input voltage max | VCC+0.3V |
| Txd high level input voltage min | 2V |
| Virtual junction temperature max | 125C |
| Virtual junction temperature min | -40C |
| Differential input resistance max | 80kOhm |
| Differential input resistance min | 30kOhm |
| Shutdown junction temperature typ | 160C |
| Differential input capacitance typ | 5pF |
| Receiver propagation delay tphl max | 90ns |
| Receiver propagation delay tphl min | 45ns |
| Receiver propagation delay tphl typ | 70ns |
| Receiver propagation delay tplh max | 130ns |
| Receiver propagation delay tplh min | 60ns |
| Receiver propagation delay tplh typ | 100ns |
| Transient voltage canh canl split max | 200V |
| Transient voltage canh canl split min | -200V |
| Differential output signal fall time max | 50ns |
| Differential output signal rise time max | 25ns |
| Enable time from standby to dominant max | 10us |
| Short circuit output current canh 12v max | 1mA |
| Short circuit output current canh 12v min | 0.36mA |
| Short circuit output current canl 12v max | 105mA |
| Short circuit output current canl 12v min | 71mA |
| Transmitter dominant voltage symmetry max | 400mV |
| Transmitter dominant voltage symmetry min | -400mV |
| Negative going input threshold voltage min | 500mV |
| Negative going input threshold voltage typ | 650mV |
| Positive going input threshold voltage min | 800mV |
| Positive going input threshold voltage typ | 900mV |
| Peak to peak common mode output voltage max | 30mV |
| Bus dominant differential output voltage max | 3V |
| Bus dominant differential output voltage min | 1.5V |
| Common mode stabilization output voltage max | VCC |
| Common mode stabilization output voltage min | 0.3VCC |
| Common mode stabilization output voltage typ | 0.7VCC |
| Short circuit output current canh neg12v max | -72mA |
| Short circuit output current canh neg12v min | -105mA |
| Short circuit output current canl neg12v max | 0.5mA |
| Short circuit output current canl neg12v min | -1mA |
| Bus recessive differential output voltage max | 0.012V |
| Bus recessive differential output voltage min | -0.012V |
| Common mode stabilization leakage current max | 5uA |
| Common mode stabilization leakage current min | -5uA |
| Bus recessive differential output voltage no load max | 0.05V |
| Bus recessive differential output voltage no load min | -0.5V |
