Драйвер верхнего и нижнего плеча неинвертирующий двузканальный 600В 2.5A
У поставщика
ПроизводительInfineon
КатегорияМикросхемы
У поставщиков
8 шт.
Норм. уп.: 45
Цены поставщиков
Склад 13
В наличии:8 шт
Срок поставки: до недели
Норм. уп.: 45
| Кол-во, шт. | Цена, ₽ |
|---|---|
| от 1 | 940,46 |
| от 2 | 928,74 |
| от 3 | 913,55 |
| от 4 | 891,83 |
| от 8 | 855,24 |
Описание

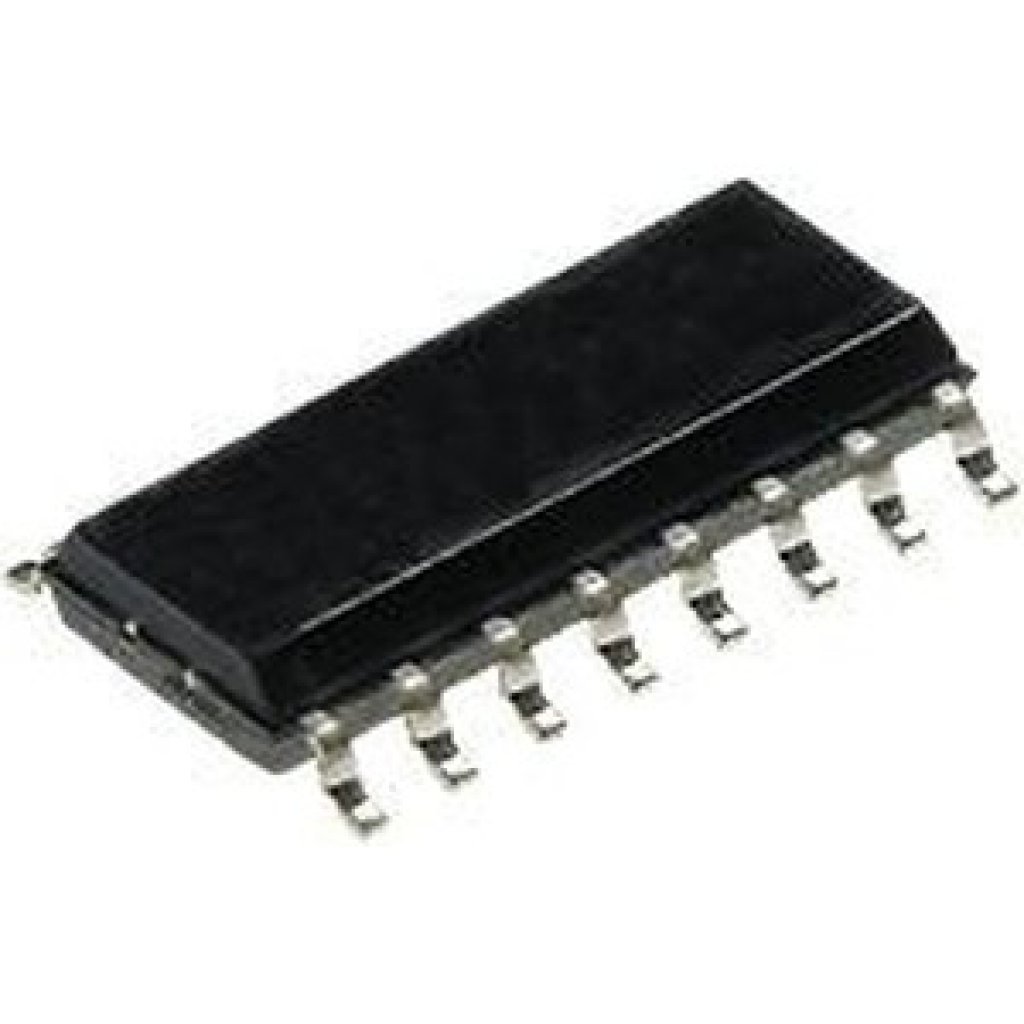

Драйвер верхнего и нижнего плеча от Infineon. Микросхема рассчитана на напряжение до 600 В и выходной ток 2,5 А, выпускается в корпусе SO16W. Подходит для управления силовыми ключами в импульсных источниках питания и промышленной автоматике.
Технические характеристики
| Тип монтажа | SMD |
| Описание | High voltage, high speed power MOSFET and IGBT driver with independent high and low side referenced output channels |
| Артикул | IR2113 |
| Корпус | SO16W |
| Типы корпусов | 14 Lead DIP, 14 Lead DIP w/o Lead 4, 16 Lead DIP w/o Leads 5 & 6, 16 Lead SOIC |
| Delay matching | 10ns max |
| Вых. ток | 2A |
| Время нарастания | 25ns typ, 35ns max |
| Logic supply range | 5 to 20V |
| Время спада | 17ns typ, 25ns max |
| Logic input voltage | VSS - 0.3 to VDD + 0.3V |
| Logic supply voltage | VSS - 0.3 to VSS + 25V |
| Gate drive supply range | 10 to 20V |
| Low side output voltage | -0.3 to VCC + 0.3V |
| Тип упаковки | Tube (туба) |
| High side output voltage | VS - 0.3 to VB + 0.3V |
| Макс. темп. перехода | 150°C |
| Low level output voltage | 0.1V max |
| Диапазон темп. окр. | -40 to 125°C |
| Logic 0 input voltage max | 6.0V |
| Logic 1 input voltage min | 9.5V |
| Диап. темп. хр. | -55 to 150°C |
| Turn on propagation delay | 120ns typ, 150ns max |
| Logic 0 input bias current | 1µA max |
| Logic 1 input bias current | 20µA typ, 40µA max |
| Shutdown propagation delay | 110ns typ, 140ns max |
| Turn off propagation delay | 94ns typ, 125ns max |
| Logic supply offset voltage | VCC - 25 to VCC + 0.3V |
| Floating channel voltage max | 600V |
| Quiescent vbs supply current | 125µA typ, 230µA max |
| Quiescent vcc supply current | 180µA typ, 340µA max |
| Quiescent vdd supply current | 15µA typ, 30µA max |
| Описание (англ.) | Driver 600V 2.5A 2-OUT Hi/Lo Side Non-Inv |
| Logic and power ground offset | ±5V |
| Low side fixed supply voltage | -0.3 to 25V |
| Offset supply leakage current | 50µA max |
| High level output voltage drop | 1.2V max |
| Lead temperature soldering 10s | 300°C |
| Recommended logic input voltage | VSS to VDD |
| Recommended logic supply voltage | VSS + 5 to VSS + 20V |
| Recommended low side output voltage | 0 to VCC |
| Recommended high side output voltage | VS to VB |
| High side absolute max supply voltage | 625V |
| Package power dissipation 14 lead dip | 1.6W |
| Package power dissipation 16 lead soic | 1.25W |
| Output low short circuit pulsed current | 2.0A min, 2.5A typ |
| Recommended logic supply offset voltage | -5 to 5V |
| High side floating supply voltage offset | VB - 25 to VB + 0.3V |
| Output high short circuit pulsed current | 2.0A min, 2.5A typ |
| Allowable offset supply voltage transient | 50V/ns |
| Recommended low side fixed supply voltage | 10 to 20V |
| Package power dissipation 14 lead dip no lead 4 | 1.5W |
| Vbs supply undervoltage negative going threshold | 7.0 to 9.4V |
| Vbs supply undervoltage positive going threshold | 7.5 to 9.7V |
| Vcc supply undervoltage negative going threshold | 7.0 to 9.4V |
| Vcc supply undervoltage positive going threshold | 7.4 to 9.6V |
| Package power dissipation 16 lead dip no leads 5 6 | 1.6W |
| Thermal resistance junction to ambient 14 lead dip | 75°C/W |
| Thermal resistance junction to ambient 16 lead soic | 100°C/W |
| Recommended high side floating supply absolute voltage | VS + 10 to VS + 20V |
| Recommended high side floating supply offset voltage max | 600V |
| Thermal resistance junction to ambient 14 lead dip no lead 4 | 85°C/W |
| Thermal resistance junction to ambient 16 lead dip no leads 5 6 | 75°C/W |
