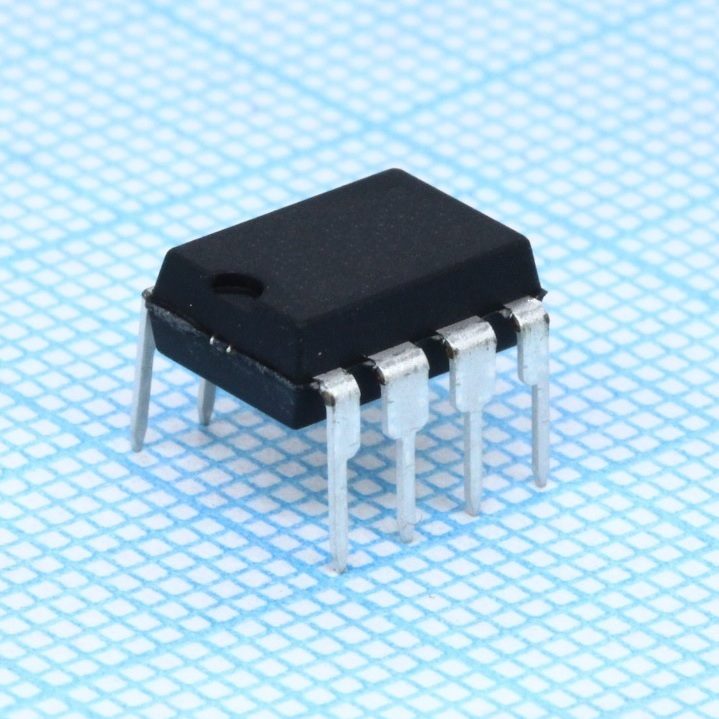

Драйвер полумостовой 8-DIP IRS2004PBF
У поставщика
ПроизводительInfineon
КатегорияДрайверы Full и Half-Bridge
У поставщиков
180 шт.
Норм. уп.: 50
Цены поставщиков
Склад 13
В наличии:180 шт
Срок поставки: до недели
Норм. уп.: 50
Минимальная партия: 20 шт
| Кол-во, шт. | Цена, ₽ |
|---|---|
| от 1 | 36,73 |
| от 10 | 35,77 |
| от 18 | 34,40 |
| от 35 | 32,81 |
| от 100 | 31,13 |
Описание
Драйвер полумостовой IRS2004PBF от Infineon. Работает при напряжении до 200 В, выходной ток 0.6 А, выпускается в корпусе DIP-8. Подходит для управления силовыми ключами в импульсных источниках питания и промышленной автоматике.
Технические характеристики
| Корпус | 8-Lead PDIP |
| Тип монтажа | Выводной |
| Кол-во выводов | 8 |
| Описание | Half-bridge driver |
| Артикул | IRS2004PBF |
| Channel type | Half-bridge |
| Deadtime max | 650ns |
| Deadtime min | 400ns |
| Deadtime typ | 520ns |
| Соотв. RoHS | Да |
| Shutdown input | Да |
| Absolute max vb | -0.3V to 225V |
| Absolute max vs | VB-25V to VB+0.3V |
| Absolute max vcc | -0.3V to 25V |
| Absolute max vho | VS-0.3V to VB+0.3V |
| Absolute max vin | -0.3V to VCC+0.3V |
| Absolute max vlo | -0.3V to VCC+0.3V |
| Delay matching max | 60ns |
| Offset voltage max | 200V |
| Recommended vb max | VS+20V |
| Recommended vb min | VS+10V |
| Recommended vs max | 200V |
| Bootstrap operation | Да |
| Recommended vcc max | 20V |
| Recommended vcc min | 10V |
| Recommended vin max | VCC |
| Recommended vin min | 0V |
| Recommended vlo max | VCC |
| Recommended vlo min | 0V |
| Undervoltage lockout | Да |
| Gate drive supply max | 20V |
| Gate drive supply min | 10V |
| Turn on rise time max | 170ns |
| Turn on rise time typ | 70ns |
| Turn off fall time max | 90ns |
| Turn off fall time typ | 35ns |
| Output current sink typ | 270mA |
| Макс. темп. хр. | 150C |
| Мин. темп. хр. | -55C |
| Thermal resistance pdip | 125C/W |
| Thermal resistance soic | 200C/W |
| Тип упаковки | Tube (туба) |
| Макс. темп. перехода | 150C |
| Input logic compatibility | 3.3V, 5V, 15V |
| Offset supply leakage max | 50uA |
| Output current source typ | 130mA |
| Sd negative threshold max | 0.8V |
| Sd positive threshold min | 2.5V |
| High side floating channel | Да |
| Power dissipation pdip 25c | 1.0W |
| Power dissipation soic 25c | 0.625W |
| Cross conduction prevention | Да |
| Low level output voltage max | 0.1V |
| Low level output voltage typ | 0.02V |
| Описание (англ.) | Driver 200V 0.6A 2-OUT High and Low Side Half Brdg Inv/Non-Inv 8-Pin PDIP Tube |
| Logic input low threshold max | 0.8V |
| Turn on propagation delay max | 820ns |
| Turn on propagation delay typ | 680ns |
| Lead temperature soldering 10s | 300C |
| Logic input high threshold min | 2.5V |
| Shutdown propagation delay max | 220ns |
| Shutdown propagation delay typ | 160ns |
| Turn off propagation delay max | 220ns |
| Turn off propagation delay typ | 150ns |
| Vcc uvlo negative threshold max | 9V |
| Vcc uvlo negative threshold min | 7.4V |
| Vcc uvlo negative threshold typ | 8.2V |
| Vcc uvlo positive threshold max | 9.8V |
| Vcc uvlo positive threshold min | 8V |
| Vcc uvlo positive threshold typ | 8.9V |
| Logic low input bias current max | 5uA |
| Quiescent vbs supply current max | 55uA |
| Quiescent vbs supply current typ | 30uA |
| Quiescent vcc supply current max | 270uA |
| Quiescent vcc supply current typ | 150uA |
| Logic high input bias current max | 10uA |
| Logic high input bias current typ | 3uA |
| Operating ambient temperature max | 125C |
| Operating ambient temperature min | -40C |
| High level output voltage drop max | 0.2V |
| High level output voltage drop typ | 0.05V |
| High side output in phase with input | Да |
| Output low short circuit current min | 270mA |
| Output low short circuit current typ | 600mA |
| Allowable offset supply transient max | 50V/ns |
| Output high short circuit current min | 130mA |
| Output high short circuit current typ | 290mA |
| Рабочая температура | -40°C ~ 125°C |
