РЧ-система на кристалле (SoC) SMD IC WiFi Dual Core BT Combo
У поставщика
ПроизводительEspres
У поставщиков
200 шт.
Норм. уп.: 5000
Цены поставщиков
Склад 13
В наличии:200 шт
Срок поставки: до недели
Норм. уп.: 5000
Минимальная партия: 4 шт
| Кол-во, шт. | Цена, ₽ |
|---|---|
| от 1 | 243,02 |
| от 5 | 234,51 |
| от 10 | 226,30 |
| от 20 | 219,77 |
| от 39 | 216,17 |
Описание

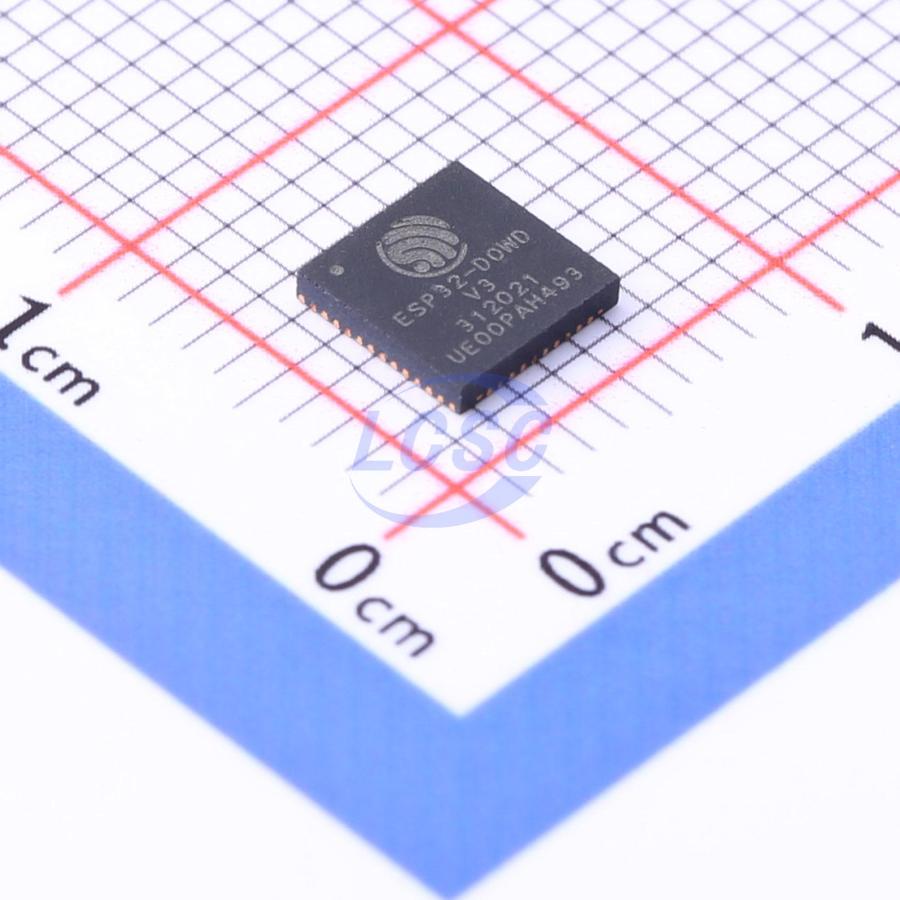

ESP32-D0WD-V3 — это РЧ-система на кристалле (SoC) от Espressif для IoT-устройств. Чип сочетает двухъядерный процессор, поддержку WiFi и Bluetooth, работает в диапазоне 2412–2484 МГц. Выполнен в компактном корпусе QFN-48 (5x5 мм) для поверхностного монтажа. Подходит для разработки умных устройств, систем автоматизации и беспроводной передачи данных.
Технические характеристики
| Cpu | Xtensa dual-core 32-bit LX6 |
| GPIO | 34 |
| Type | TxRx + MCU |
| Clocks | CPU clock, RTC clock, Audio PLL clock |
| Серия | ESP32 |
| Таймеры | 64-bit timers, Watchdog timers |
| Корпус | QFN48 |
| Protocol | 802.11b/g/n, Bluetooth 4.2 |
| Тип монтажа | SMD |
| Frequency | 2.412GHz ~ 2.484GHz |
| Cpu cores | 2 |
| Кол-во выводов | 48 |
| Modulation | 8DPSK, DSSS, DQPSK, OFDM |
| Размеры | 6x6mm or 5x5mm |
| Gpio count | See pin description |
| Технология | TSMC ultra-low-power 40nm |
| Wifi modes | Infrastructure Station, SoftAP, Promiscuous |
| Memory Size | 448kB ROM, 520kB SRAM |
| Sensitivity | -97dBm |
| Описание | Single 2.4 GHz Wi-Fi and Bluetooth combo chip |
| Артикул | ESP32-D0WD-V3 |
| Peripherals | GPIO, ADC, Hall Sensor, DAC, Touch Sensor, Ultra-Low-Power Co-processor, Ethernet MAC, SD/SDIO/MMC Host Controller, SDIO/SPI Slave Controller, UART, I2C, I2S, Infrared Remote Controller, Pulse Counter, PWM, LED PWM, SPI, Accelerator |
| Mounting Type | Surface Mount |
| Сертификация | Available at www.espressif.com/en/certificates |
| Wafer version | ECO V3 |
| Wifi features | WMM, TX/RX A-MPDU, RX A-MSDU, Immediate Block ACK, Defragmentation, Automatic Beacon monitoring (hardware TSF), 4x virtual Wi-Fi interfaces, Antenna diversity |
| Wifi standard | 802.11b/g/n |
| Package / Case | 48-VFQFN Exposed Pad |
| Power - Output | 20.5dBm |
| Разрешение АЦП | 12-bit |
| Разрешение ЦАП | 8-bit |
| Напряжение питания | 2.2V to 3.6V |
| Wifi frequency | 2.4GHz |
| Data Rate (Max) | 150Mbps |
| Bluetooth class | Class-1, Class-2, Class-3 |
| External memory | External Flash and SRAM supported |
| Internal memory | 448KB ROM, 520KB SRAM |
| Voltage - Supply | 2.3V ~ 3.6V |
| Описание | IC RF TXRX+MCU BLE 48QFN |
| Serial Interfaces | ADC, I2C, I2S, SDIO, SPI, PWM, UART |
| Bluetooth version | v4.2 BR/EDR and BLE |
| RF Family/Standard | Bluetooth, WiFi |
| Bluetooth features | Enhanced Power Control, NZIF receiver, Adaptive Frequency Hopping (AFH), Standard HCI based on SDIO/SPI/UART, High-speed UART HCI up to 4Mbps, Bluetooth 4.2 BR/EDR BLE dual mode controller, SCO/eSCO, CVSD and SBC for audio codec, Bluetooth Piconet and Scatternet, Multi-connections in Classic BT and BLE, Simultaneous advertising and scanning |
| Bluetooth tx power | +12dBm |
| Размеры упаковки | 6x6mm or 5x5mm |
| Touch sensor gpios | 10 |
| Wifi max data rate | 150Mbps |
| Current - Receiving | 95mA ~ 100mA |
| Темп. хранения | -40°C to +125°C |
| DigiKey Programmable | Not Verified |
| Absolute max voltage | 3.6V |
| Информация для заказа | See Table 23 |
| Part number variants | ESP32-D0WD-V3, ESP32-D0WDQ6-V3, ESP32-D0WD, ESP32-D0WDQ6, ESP32-D2WD, ESP32-S0WD, ESP32-U4WDH |
| Rf power consumption | See Table 15 |
| Operating Temperature | -40°C ~ 125°C |
| Раб. температура | -40°C to +85°C |
| Current - Transmitting | 130mA ~ 240mA |
| Supplier Device Package | 48-QFN (5x5) |
| Power consumption modes | See Table 6 |
| Тип упаковки | Palette (палетта) |
| Bluetooth ble sensitivity | -94dBm |
| Dc characteristics voltage | 3.3V |
| Reliability qualifications | See Table 14 |
| Описание (англ.) | IC RF TXRX IoT WiFi Bluetooth 2412MHz~2484MHz QFN-48-EP(5x5) |
| Dc characteristics temperature | 25°C |
