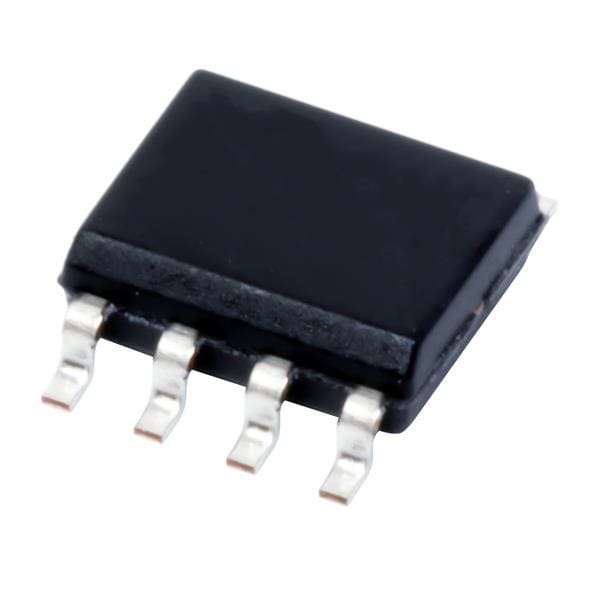

Приемопередатчик шины LVDS одноканальный 8-SOIC
У поставщика
ПроизводительTexas Instruments
КатегорияМикросхемы
У поставщиков
71 шт.
Норм. уп.: 95
Цены поставщиков
Склад 13
В наличии:71 шт
Срок поставки: до недели
Норм. уп.: 95
Минимальная партия: 4 шт
| Кол-во, шт. | Цена, ₽ |
|---|---|
| от 1 | 260,22 |
| от 9 | 244,55 |
| от 18 | 231,77 |
| от 36 | 222,27 |
| от 71 | 215,20 |
Описание
Приемопередатчик шины LVDS от Texas Instruments. Одноканальное устройство в корпусе SOIC-8, работающее в диапазоне температур от -40 до +85 °C. Подходит для высокоскоростной передачи данных в промышленной автоматике и телекоммуникационном оборудовании.
Технические характеристики
| ЭСР HBM | >2.0kV |
| Корпус | SOIC-8 |
| Тип монтажа | SMD |
| Кол-во выводов | 8 |
| Derate soic | 8.2mW/°C |
| Package number | D0008A |
| Signaling rate | >100Mbps |
| Common mode range | ±1V |
| Макс. вх. ток | +20µA |
| Input current min | -20µA |
| Тип. входной ток | ±1µA |
| Min load impedance | 27Ohms |
| Макс. напр. пит. | 5.5V |
| Мин. напр. пит. | 3.0V |
| Input threshold low | -100mV |
| Input threshold high | +100mV |
| Receiver sensitivity | ±100mV |
| Differential skew max | 1.0ns |
| Differential skew typ | 0.2ns |
| Driver output current | 10mA |
| Input low current max | ±10µA |
| Input low current typ | ±1µA |
| Offset voltage 5v max | 1.65V |
| Offset voltage 5v min | 1V |
| Offset voltage 5v typ | 1.35V |
| Supply voltage 5v max | 5.5V |
| Supply voltage 5v min | 4.5V |
| Input high current max | ±10µA |
| Input high current typ | ±1µA |
| Offset voltage 3v3 max | 1.65V |
| Offset voltage 3v3 min | 1V |
| Offset voltage 3v3 typ | 1.25V |
| Supply voltage 3v3 max | 3.6V |
| Supply voltage 3v3 min | 3.0V |
| Voltage output low max | 0.4V |
| Voltage output low typ | 0.1V |
| Bus pin capacitance typ | 5pF |
| Макс. темп. хр. | +150°C |
| Мин. темп. хр. | -65°C |
| Тип упаковки | Tube (туба) |
| Enable time z to low max | 9.0ns |
| Enable time z to low min | 1.0ns |
| Enable time z to low typ | 4.5ns |
| Макс. темп. перехода | +150°C |
| Disable time low to z max | 10.0ns |
| Disable time low to z min | 0.5ns |
| Disable time low to z typ | 5.0ns |
| Enable time z to high max | 7.0ns |
| Enable time z to high min | 2.0ns |
| Enable time z to high typ | 5.0ns |
| Maximum input low voltage | 0.8V |
| Макс. раб. темп. | +85°C |
| Мин. раб. темп. | -40°C |
| Disable time high to z max | 9.0ns |
| Disable time high to z min | 0.5ns |
| Disable time high to z typ | 4.5ns |
| Температура пайки выводов | 260°C |
| Minimum input high voltage | 2.0V |
| Receiver input voltage max | 2.9V |
| Receiver input voltage min | 0.0V |
| Voltage output high 5v max | 5.0V |
| Voltage output high 5v min | 4.3V |
| Макс. напряжение питания | 6.0V |
| Offset magnitude change max | 50mV |
| Offset magnitude change typ | 5mV |
| Voltage output high 3v3 max | 3V |
| Voltage output high 3v3 min | 2.8V |
| Absolute max bus pin voltage | -0.3V to +3.9V |
| Описание (англ.) | TXRX BUS LVDS SINGLE 8-SOIC |
| Input diode clamp voltage max | -0.8V |
| Input diode clamp voltage min | -1.5V |
| Transition time high to low max | 2.0ns |
| Transition time high to low typ | 0.3ns |
| Transition time low to high max | 2.0ns |
| Transition time low to high typ | 0.3ns |
| Absolute max driver input voltage | -0.3V to VCC+0.3V |
| Absolute max enable input voltage | -0.3V to VCC+0.3V |
| Max package power dissipation 25c | 1025mW |
| Output differential voltage 5v max | 390mV |
| Output differential voltage 5v min | 145mV |
| Output differential voltage 5v typ | 270mV |
| Power supply current 5v driver max | 25mA |
| Power supply current 5v driver typ | 20mA |
| Output differential voltage 3v3 max | 360mV |
| Output differential voltage 3v3 min | 140mV |
| Output differential voltage 3v3 typ | 250mV |
| Power supply current 3v3 driver max | 22mA |
| Power supply current 3v3 driver typ | 16mA |
| Power supply current 5v disable max | 8mA |
| Power supply current 5v disable typ | 3mA |
| Absolute max receiver output voltage | -0.3V to VCC+0.3V |
| Power supply current 3v3 disable max | 7.5mA |
| Power supply current 3v3 disable typ | 3mA |
| Power supply current 5v receiver max | 10mA |
| Power supply current 5v receiver typ | 6mA |
| Power supply current 3v3 receiver max | 8mA |
| Power supply current 3v3 receiver typ | 5mA |
| Рабочая температура | -40В°C ~ 85В°C |
| Output short circuit current driver max | -20mA |
| Output short circuit current driver typ | -12mA |
| Differential prop delay high to low 3v3 max | 5.0ns |
| Differential prop delay high to low 3v3 min | 1.0ns |
| Differential prop delay high to low 3v3 typ | 3.0ns |
| Differential prop delay low to high 3v3 max | 5.0ns |
| Differential prop delay low to high 3v3 min | 1.0ns |
| Differential prop delay low to high 3v3 typ | 2.8ns |
| Power supply current 5v driver receiver max | 25mA |
| Power supply current 5v driver receiver typ | 17mA |
| Output short circuit current receiver 5v max | -130mA |
| Output short circuit current receiver 5v min | -35mA |
| Output short circuit current receiver 5v typ | -90mA |
| Power supply current 3v3 driver receiver max | 20mA |
| Power supply current 3v3 driver receiver typ | 13mA |
| Output short circuit current receiver 3v3 max | -85mA |
| Output short circuit current receiver 3v3 min | -5mA |
| Output short circuit current receiver 3v3 typ | -35mA |
| Output differential voltage magnitude change max | 30mV |
| Output differential voltage magnitude change typ | 3mV |
| Receiver differential prop delay high to low max | 12.0ns |
| Receiver differential prop delay high to low min | 2.5ns |
| Receiver differential prop delay high to low typ | 5.0ns |
