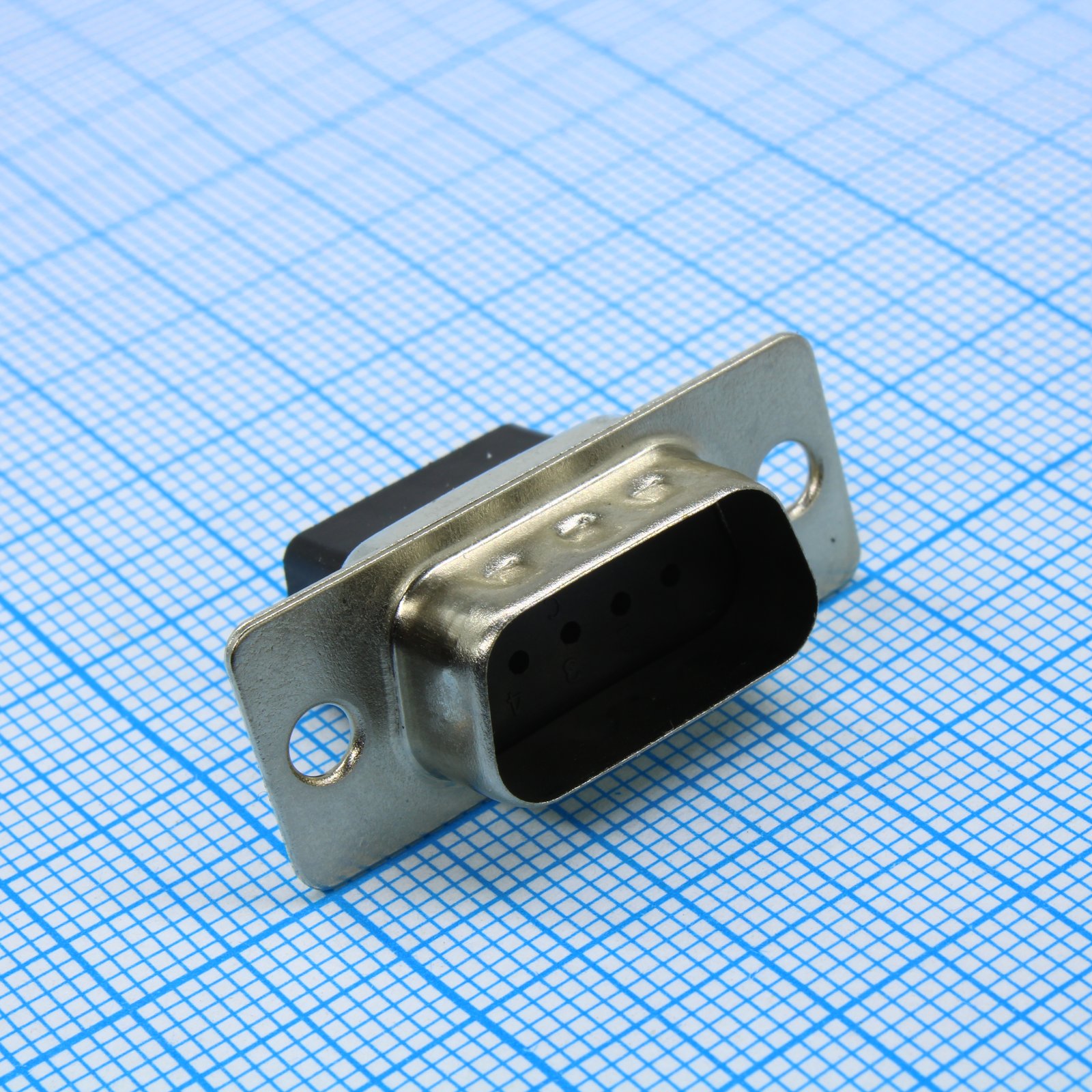

Разъемы / D-SUB / D-SUB под обжим на кабель (DС-серия) / (09 pin (п) Вилка 09 pin под обжим на кабель) / DC-09M корпус (DS1036-01-09MBNSS)
У поставщика
ПроизводительCONNFLY
КатегорияРазъемы D-SUB и корпуса для них
У поставщиков
7 523 шт.
Норм. уп.: 50
Цены поставщиков
Склад 14
В наличии:6 447 шт.
Срок поставки: до 7 дн.
Норм. уп.: 50
| Кол-во, шт. | Цена, ₽ |
|---|---|
| от 50 | 16,36 |
Склад 13
В наличии:1 076 шт
Срок поставки: до недели
Норм. уп.: 50
Минимальная партия: 30 шт
| Кол-во, шт. | Цена, ₽ |
|---|---|
| от 1 | 23,87 |
| от 100 | 21,54 |
| от 200 | 19,61 |
| от 350 | 18,14 |
| от 700 | 17,04 |
Описание
Разъем D-Sub серии DC от производителя CONNFLY. Модель DS1036-01-09MBNSS представляет собой вилку (male) на 9 контактов, предназначенную для обжима на кабель. Компонент оснащен прочным корпусом DC-09M, обеспечивающим надежное соединение в промышленных и коммуникационных интерфейсах. Подходит для сборки кабельных сборок стандарта RS-232 и других низкочастотных цепей.
Технические характеристики
| Тип | D-SUB |
| Тип монтажа | Выводной |
| Долговечность | 300 cycles |
| Dimension A | 30.80mm |
| Dimension B | 24.99mm |
| Цвет корпуса | Синий |
| Shell plating | Front & back shell tin |
| Тип клеммы | Male Terminal |
| Тип разъема | вилка |
| Номин. контакта | 9P |
| Male dimension | 17.90mm |
| Body screw dim A | 3.00mm |
| Female dimension | 16.33mm |
| Покрытие выводов | Selective gold flash |
| Сопр. контакта | 20mΩ Max. Initial |
| Число контактов | 9 |
| Male terminal width | 1.7mm |
| Application wire awg | #20-28 |
| Male terminal height | 50.2mm |
| Male terminal length | 73.1mm |
| Female terminal width | 1.7mm |
| Сопр. изоляции | 1000MΩ Min. |
| Раб. температура | -40°C ~ +105°C |
| Female terminal height | 81.2mm |
| Female terminal length | 73.1mm |
| Male terminal contact width | 2.0mm |
| Male terminal contact height | 6.7mm |
| Male terminal contact length | 18.0mm |
| Female terminal contact width | 2.0mm |
| Terminal application wire awg | 20AWG~24AWG |
| Female terminal contact height | 7.1mm |
| Female terminal contact length | 13.64mm |
| Male terminal contact diameter | 1.5mm |
| Кол-во контактов | 9 контактов |
| Диэлектрическая прочность | 500V AC (rms) for 1 minute |
| Male terminal contact thickness | 3.0mm |
| Female terminal contact diameter | 1.5mm |
| Male terminal contact hole depth | 2.05mm |
| Male terminal contact hole pitch | 2.77mm |
| Female terminal contact thickness | 3.0mm |
| Male terminal contact hole offset | 1.385mm |
| Female terminal contact hole depth | 2.05mm |
| Female terminal contact hole pitch | 2.77mm |
| Male terminal contact hole offset2 | 1.20mm |
| Male terminal contact hole offset3 | 2.84mm |
| Male terminal contact hole offset4 | 9.2mm |
| Male terminal contact hole offset5 | 12.5mm |
| Male terminal contact hole offset6 | 6.0mm |
| Male terminal contact hole offset7 | 10.9mm |
| Male terminal contact hole offset8 | 17.5mm |
| Male terminal contact hole offset9 | 2.0mm |
| Female terminal contact hole offset | 1.385mm |
| Male terminal contact hole diameter | 1.2mm |
| Male terminal contact hole offset10 | 14.4mm |
| Male terminal contact hole offset11 | 8.04mm |
| Male terminal contact hole offset12 | 0.1mm |
| Male terminal contact hole offset13 | 1.37mm |
| Male terminal contact hole offset14 | 2.18mm |
| Male terminal contact hole offset15 | 4.2mm |
| Male terminal contact hole offset16 | 7.29mm |
| Male terminal contact hole offset17 | 2.4mm |
| Male terminal contact hole offset18 | 0.2mm |
| Male terminal contact hole offset19 | 17.24mm |
| Female terminal contact hole offset2 | 1.20mm |
| Female terminal contact hole offset3 | 2.84mm |
| Female terminal contact hole offset4 | 7.9mm |
| Female terminal contact hole offset5 | 12.5mm |
| Female terminal contact hole offset6 | 5.8mm |
| Female terminal contact hole offset7 | 10.9mm |
| Female terminal contact hole offset8 | 17.5mm |
| Female terminal contact hole offset9 | 2.0mm |
| Female terminal contact hole diameter | 1.2mm |
| Female terminal contact hole offset10 | 14.4mm |
| Female terminal contact hole offset11 | 8.04mm |
| Female terminal contact hole offset12 | 0.1mm |
| Female terminal contact hole offset13 | 1.37mm |
| Female terminal contact hole offset14 | 2.18mm |
| Female terminal contact hole offset15 | 4.2mm |
| Female terminal contact hole offset16 | 7.29mm |
| Female terminal contact hole offset17 | 2.4mm |
| Female terminal contact hole offset18 | 0.2mm |
| Female terminal contact hole offset19 | 17.24mm |
