4-х разрядный сдвоенный последовательно-параллельный регистр сдвига 16-Pin PDIP туба
У поставщика
ПроизводительTexas Instruments
КатегорияМикросхемы
У поставщиков
239 шт.
Норм. уп.: 25
Цены поставщиков
Склад 13
В наличии:239 шт
Срок поставки: до недели
Норм. уп.: 25
Минимальная партия: 28 шт
| Кол-во, шт. | Цена, ₽ |
|---|---|
| от 1 | 27,20 |
| от 13 | 26,30 |
| от 25 | 25,04 |
| от 50 | 23,71 |
| от 100 | 22,39 |
Описание

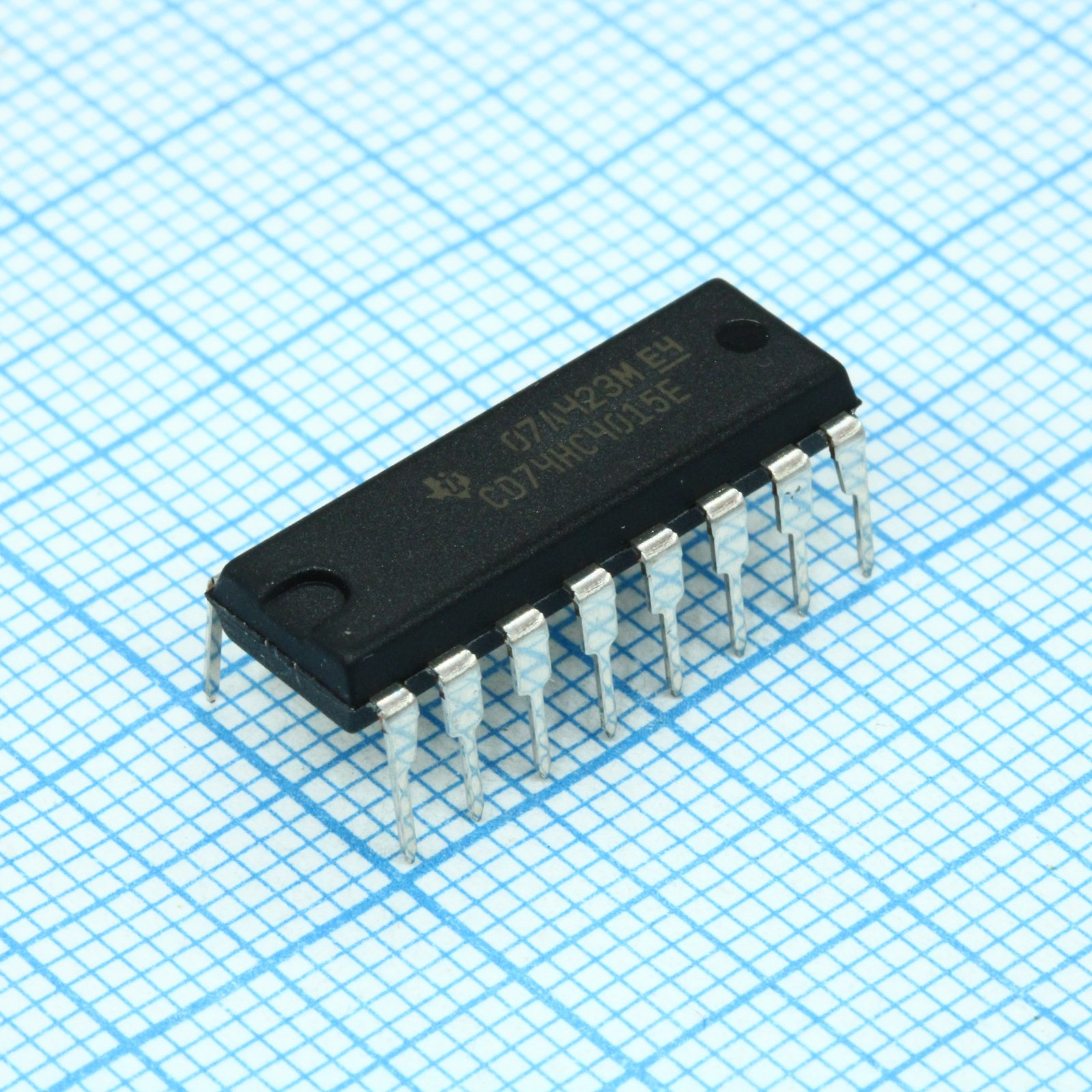

CD74HC4015E от Texas Instruments — это сдвоенный 4-разрядный последовательно-параллельный регистр сдвига. Выполнен в корпусе DIP16, упаковка — туба. Работает в широком диапазоне напряжений, характерном для логики HC. Применяется в промышленной автоматике и цифровых устройствах для расширения количества выходов.
Технические характеристики
| Контактов | 16 |
| Fanout | Standard outputs: 10 LSTTL loads; Bus driver outputs: 15 LSTTL loads |
| Корпус | 16 Ld PDIP |
| Функция | Dual 4-Stage Static Shift Register |
| Тип монтажа | Выводной |
| Описание | Dual 4-Stage Static Shift Register |
| Артикул | CD74HC4015E |
| Логическое семейство | HC |
| Noise immunity | NIH: 30% of VCC at VCC=5V; NIL: 30% of VCC at VCC=5V |
| Mr pulse width tw | VCC 2V: 150ns min at 25°C, 190ns min at -40°C to 85°C, 225ns min at -55°C to 125°C; VCC 6V: 26ns min at 25°C, 33ns min at -40°C to 85°C, 38ns min at -55°C to 125°C; VCC 4.5V: 30ns min at 25°C, 38ns min at -40°C to 85°C, 45ns min at -55°C to 125°C |
| Clock pulse width tw | VCC 2V: 80ns min at 25°C, 100ns min at -40°C to 85°C, 120ns min at -55°C to 125°C; VCC 6V: 14ns min at 25°C, 17ns min at -40°C to 85°C, 20ns min at -55°C to 125°C; VCC 4.5V: 16ns min at 25°C, 20ns min at -40°C to 85°C, 24ns min at -55°C to 125°C |
| Информация для заказа | CD74HC4015E: Корпус: 16 Ld PDIP; Диапазон температур: -55°C to 125°C; CD74HC4015M: Корпус: 16 Ld SOIC; Диапазон температур: -55°C to 125°C; CD54HC4015F3A: Корпус: 16 Ld CERDIP; Диапазон температур: -55°C to 125°C |
| Диапазон питания | 2V to 6V |
| Input capacitance cin | 10pF max |
| Вх. ток утечки | ±0.1µA at 25°C, ±1µA at -40°C to 85°C, ±1µA at -55°C to 125°C |
| Mr recovery time trec | VCC 2V: 50ns min at 25°C, 65ns min at -40°C to 85°C, 75ns min at -55°C to 125°C; VCC 6V: 9ns min at 25°C, 11ns min at -40°C to 85°C, 13ns min at -55°C to 125°C; VCC 4.5V: 10ns min at 25°C, 13ns min at -40°C to 85°C, 15ns min at -55°C to 125°C |
| Dc input diode current | ±20mA |
| Диап. вх. DC | 0V to VCC |
| Dc output diode current | ±20mA |
| Dc output voltage range | 0V to VCC |
| Hold time data in to cp | VCC 2V: 0ns min; VCC 6V: 0ns min; VCC 4.5V: 0ns min |
| Тип упаковки | Tube (туба) |
| Dc vcc or ground current | ±50mA |
| Input rise and fall time | VCC 2V: 1000ns max; VCC 6V: 400ns max; VCC 4.5V: 500ns max |
| Макс. темп. перехода | 150°C |
| Setup time data in to cp | VCC 2V: 60ns min at 25°C, 75ns min at -40°C to 85°C, 90ns min at -55°C to 125°C; VCC 6V: 10ns min at 25°C, 13ns min at -40°C to 85°C, 15ns min at -55°C to 125°C; VCC 4.5V: 12ns min at 25°C, 15ns min at -40°C to 85°C, 18ns min at -55°C to 125°C |
| Диап. темп. хр. | -65°C to 150°C |
| Low level input voltage vil | VCC 2V: 0.5V; VCC 6V: 1.8V; VCC 4.5V: 1.35V |
| Диап. раб. темп. | -55°C to 125°C |
| Thermal resistance theta ja | PDIP: 67°C/W; SOIC: 73°C/W |
| High level input voltage vih | VCC 2V: 1.5V; VCC 6V: 4.2V; VCC 4.5V: 3.15V |
| Maximum clock frequency fmax | VCC 2V: 6MHz at 25°C, 5MHz at -40°C to 85°C, 4MHz at -55°C to 125°C; VCC 6V: 35MHz at 25°C, 28MHz at -40°C to 85°C, 24MHz at -55°C to 125°C; VCC 4.5V: 30MHz at 25°C, 24MHz at -40°C to 85°C, 20MHz at -55°C to 125°C |
| Quiescent device current icc | 8µA typ at 25°C, 80µA max at -40°C to 85°C, 160µA max at -55°C to 125°C |
| Описание (англ.) | Shift Register Dual 4-Bit Serial to Parallel 16-Pin PDIP Tube |
| Propagation delay clock to qn | VCC 2V CL 50pF: 175ns max at 25°C, 220ns max at -40°C to 85°C, 270ns max at -55°C to 125°C; VCC 5V CL 15pF: 14ns typ at 25°C; VCC 6V CL 50pF: 30ns max at 25°C, 37ns max at -40°C to 85°C, 46ns max at -55°C to 125°C; VCC 4.5V CL 50pF: 35ns max at 25°C, 44ns max at -40°C to 85°C, 54ns max at -55°C to 125°C |
| Absolute max dc supply voltage | -0.5V to 7V |
| Output transition time ttlh tthl | VCC 2V CL 50pF: 75ns max at 25°C, 95ns max at -40°C to 85°C, 110ns max at -55°C to 125°C; VCC 6V CL 50pF: 13ns max at 25°C, 16ns max at -40°C to 85°C, 19ns max at -55°C to 125°C; VCC 4.5V CL 50pF: 15ns max at 25°C, 19ns max at -40°C to 85°C, 22ns max at -55°C to 125°C |
| Power dissipation capacitance cpd | 43pF typ at VCC=5V, CL=15pF |
| Max lead temperature soldering 10s | 300°C |
| Propagation delay mr to qn clock low | VCC 2V CL 50pF: 325ns max at 25°C, 400ns max at -40°C to 85°C, 490ns max at -55°C to 125°C; VCC 5V CL 15pF: 25ns typ at 25°C; VCC 6V CL 50pF: 55ns max at 25°C, 69ns max at -40°C to 85°C, 83ns max at -55°C to 125°C; VCC 4.5V CL 50pF: 65ns max at 25°C, 81ns max at -40°C to 85°C, 98ns max at -55°C to 125°C |
| Dc output source sink current per pin | ±25mA |
| Propagation delay mr to qn clock high | VCC 2V CL 50pF: 275ns max at 25°C, 345ns max at -40°C to 85°C, 415ns max at -55°C to 125°C; VCC 5V CL 15pF: 25ns typ at 25°C; VCC 6V CL 50pF: 47ns max at 25°C, 54ns max at -40°C to 85°C, 71ns max at -55°C to 125°C; VCC 4.5V CL 50pF: 55ns max at 25°C, 64ns max at -40°C to 85°C, 83ns max at -55°C to 125°C |
| Low level output voltage vol ttl loads | VCC 4.5V IO 4mA: 0.26V; VCC 6V IO 5.2mA: 0.26V |
| High level output voltage voh ttl loads | VCC 4.5V IO -4mA: 3.98V; VCC 6V IO -5.2mA: 5.48V |
| Low level output voltage vol cmos loads | VCC 2V IO 0.02mA: 0.1V; VCC 6V IO 0.02mA: 0.1V; VCC 4.5V IO 0.02mA: 0.1V |
| High level output voltage voh cmos loads | VCC 2V IO -0.02mA: 1.9V; VCC 6V IO -0.02mA: 5.9V; VCC 4.5V IO -0.02mA: 4.4V |
| Maximum clock frequency fmax CL 15pF VCC 5V | 60MHz typ at 25°C |
| Тип | CD74HC4015E |
