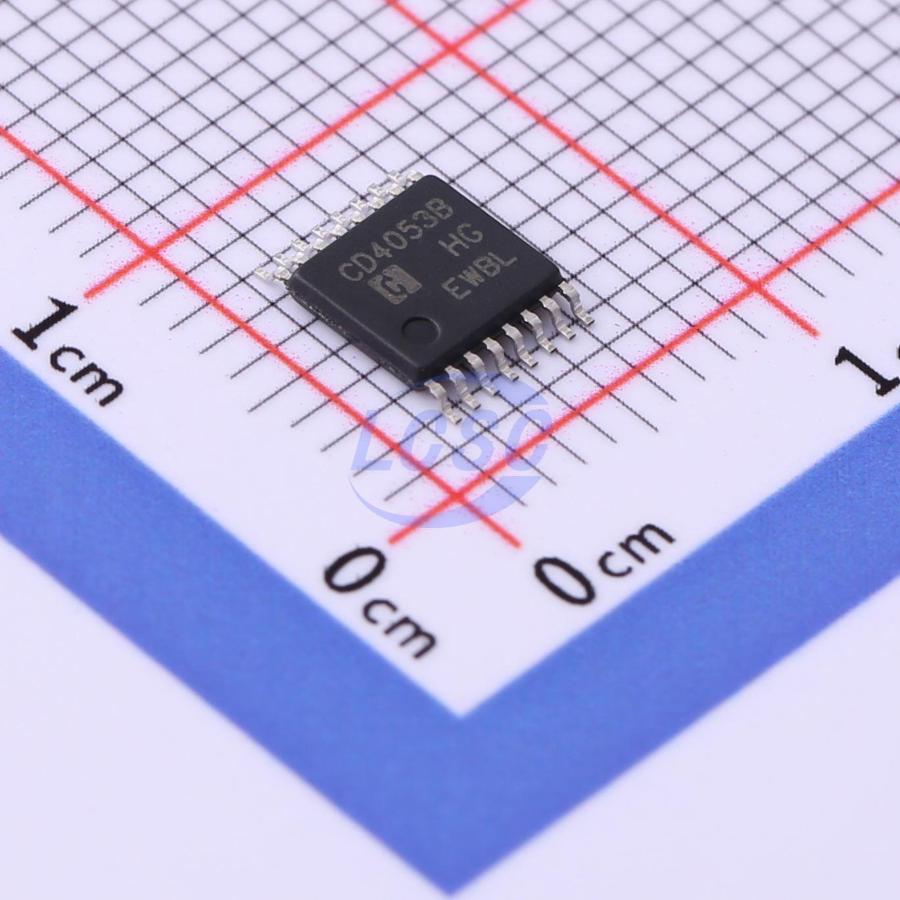

Тройной двухканальный мультиплексор [TSSOP-16]
У поставщика
ПроизводительHGSEMI
У поставщиков
2 200 шт.
Норм. уп.: 200
Цены поставщиков
Склад 12
В наличии:2 200 шт
Срок поставки: до недели
Норм. уп.: 200
Минимальная партия: 2000 шт
| Кол-во, шт. | Цена, ₽ |
|---|---|
| от 1 | 10,35 |
| от 200 | 8,03 |
Технические характеристики
| Тип | Analog Multiplexer |
| Тип монтажа | SMD |
| Тип упаковки | TSSOP-16 |
| Конфигурация | SPDT |
| Break before make | Да |
| Макс. вх. ток | 1uA |
| Количество каналов | 3 |
| Размеры упаковки | Шаг: 0.65mm; Макс. высота: 0.95mm; Height min: 0.85mm; Standoff max: 0.20mm; Standoff min: 0.05mm; Макс. ширина корпуса: 4.50mm; Body width min: 4.30mm; Lead width max: 0.25mm; Lead width min: 0.20mm; Макс. длина корпуса: 5.10mm; Мин. длина корпуса: 4.90mm; Lead length max: 0.80mm; Длина вывода мин.: 0.40mm |
| Макс. напр. пит. | 15V |
| Мин. напр. пит. | 3V |
| Channel leakage max | 100nA |
| On resistance max 5v | 180ohm |
| Тип. входной ток | 0.01uA |
| On resistance max 10v | 115ohm |
| On resistance max 15v | 90ohm |
| Макс. рассеиваемая мощность | 500mW |
| Температура пайки | 245°C for 10s |
| Input logic low max 5v | 1.5V |
| Channel leakage typical | 100pA |
| Input logic high min 5v | 3.5V |
| Input logic low max 10v | 3V |
| Input logic low max 15v | 4V |
| Макс. темп. хр. | 150°C |
| Мин. темп. хр. | -65°C |
| Input logic high min 10v | 7V |
| Input logic high min 15v | 11V |
| On resistance typical 5v | 180ohm |
| Analog supply voltage max | 15V |
| Analog supply voltage min | 0V |
| Типовая входная емкость | 7.5pF |
| On resistance typical 10v | 115ohm |
| On resistance typical 15v | 90ohm |
| Макс. раб. темп. | 85°C |
| Мин. раб. темп. | -40°C |
| Absolute supply voltage max | 18V |
| Absolute supply voltage min | -0.5V |
| Static supply current max 5v | 5uA |
| Описание (англ.) | 3 Circuit IC SWITCH 2:1 90? TSSOP-16 |
| Static supply current max 10v | 10uA |
| Static supply current max 15v | 20uA |
| Static supply current typical | 0.2uA |
| Channel on capacitance typical | 0.2pF |
| On resistance delta typical 5v | 15ohm |
| On resistance delta typical 10v | 10ohm |
| On resistance delta typical 15v | 5ohm |
| Channel input capacitance typical | 5pF |
| Absolute analog supply voltage max | 18V |
| Channel output capacitance typical | 9pF |
| Propagation delay address to output typical 5v | 100ns |
| Propagation delay address to output typical 10v | 80ns |
| Propagation delay address to output typical 15v | 50ns |
| Propagation delay inhibit to output on typical 5v | 100ns |
| Propagation delay inhibit to output off typical 5v | 100ns |
| Propagation delay inhibit to output on typical 10v | 50ns |
| Propagation delay inhibit to output on typical 15v | 30ns |
| Propagation delay inhibit to output off typical 10v | 50ns |
| Propagation delay inhibit to output off typical 15v | 30ns |
| Propagation delay signal input to output typical 5v | 15ns |
| Propagation delay signal input to output typical 10v | 10ns |
| Propagation delay signal input to output typical 15v | 7ns |
Описание
Тройной двухканальный мультиплексор [TSSOP-16]
