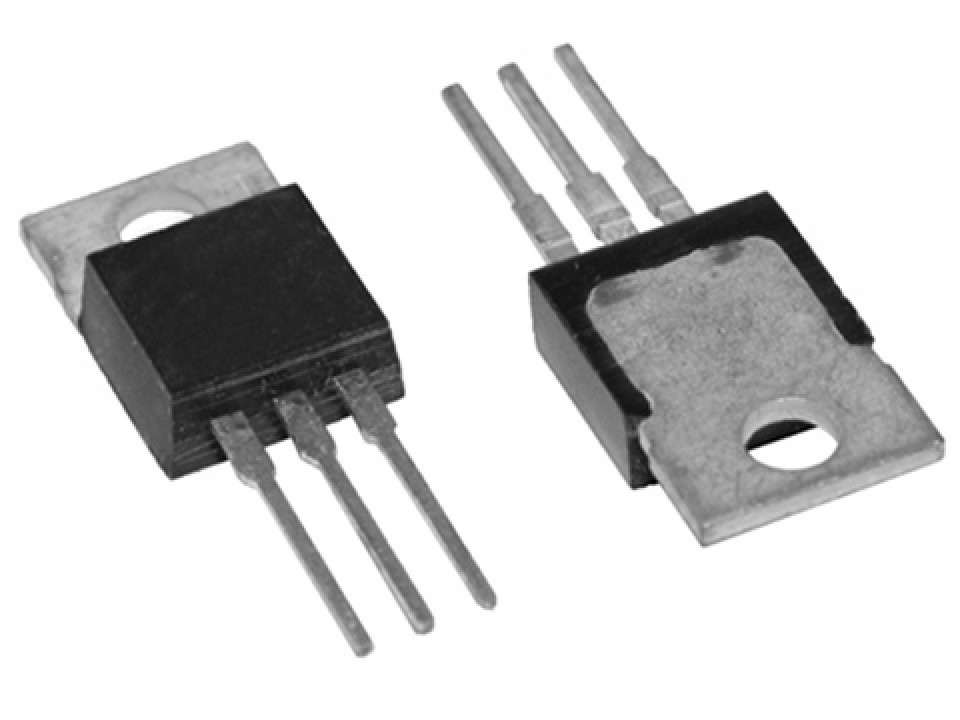

BTA41-600BRG TOP3 тиристор STMicroelectr. (арт. 092249)
У поставщика
ПроизводительSTMicroelectr.
КатегорияТиристоры
У поставщиков
60 шт.
Норм. уп.: 30
Цены поставщиков
Склад 29
В наличии:60 шт.
Срок поставки: до 10 дн.
Норм. уп.: 30
| Кол-во, шт. | Цена, ₽ |
|---|---|
| от 1 | 243,10 |
Технические характеристики
| Тип | Triac |
| Вес | 4.5g |
| Тип | Тиристор |
| Ток | 40 А |
| Корпус | TOP3 Insulated |
| Тип монтажа | THT |
| Артикул | BTA41-600BRG |
| Корпус | TOP3 |
| Монтаж | Выводной |
| UL признан | Да |
| Соотв. RoHS | Да |
| Ток удержания | 80mA |
| I2t fusing 10ms | 1000A²s |
| Voltage drm rrm | 600V |
| Peak gate current | 8A |
| Average gate power | 1W |
| Класс горючести | UL94 V0 |
| Latching current ii | 160mA |
| Ток утечки 25°C | 5µA |
| Current rms on state | 40A |
| Gate trigger voltage | 1.3V |
| Gate voltage off min | 0.2V |
| Leakage current 125c | 5mA |
| Package dimensions a | 4.60mm |
| Package dimensions b | 1.55mm |
| Package dimensions c | 15.60mm |
| Package dimensions d | 0.70mm |
| Package dimensions e | 2.90mm |
| Package dimensions f | 16.50mm |
| Package dimensions g | 21.10mm |
| Package dimensions h | 15.50mm |
| Package dimensions j | 5.65mm |
| Package dimensions k | 3.65mm |
| Package dimensions l | 4.17mm |
| Package dimensions p | 1.30mm |
| Package dimensions r | 4.60mm |
| Напряжение | 600 В |
| Insulation voltage tab | 2500Vrms |
| Dynamic resistance 125c | 10mΩ |
| Gate trigger current iv | 100mA |
| Макс. темп. хр. | 150°C |
| Мин. темп. хр. | -40°C |
| Latching current i iii iv | 70mA |
| On state voltage max 25c 60a | 1.55V |
| Voltage surge non repetitive | 700V |
| Gate trigger current i ii iii | 50mA |
| Threshold on state voltage 125c | 0.85V |
| Current surge non repetitive 20ms | 400A |
| Junction temperature operating max | 125°C |
| Junction temperature operating min | -40°C |
| Critical rate decrease main current | 10V/µs |
| Critical rate rise on state current | 50A/µs |
| Current surge non repetitive 16 7ms | 420A |
| Critical rate rise off state voltage | 500V/µs |
| Термосопротивление переход-среда | 50°C/W |
| Thermal resistance junction to case ac | 0.9°C/W |
