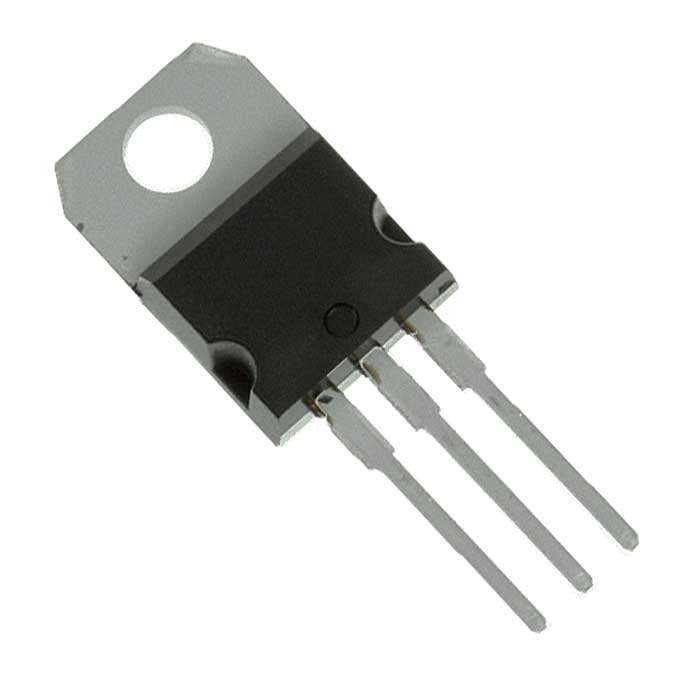

Симистор BT136-600E
У поставщика
У поставщиков
3 174 шт.
Норм. уп.: 50
Цены (собственный склад)
| Кол-во, шт. | Цена, ₽ |
|---|---|
| от 1 | 11,35 |
Цены поставщиков
РадиоЧип
В наличии:24 шт
Срок поставки: до 2 недель
Норм. уп.: 50
| Кол-во, шт. | Цена, ₽ |
|---|---|
| от 1 | 11,35 |
Склад 15
В наличии:3 150 шт
Срок поставки: до 10 дн.
Норм. уп.: 50
| Кол-во, шт. | Цена, ₽ |
|---|---|
| от 50 | 13,69 |
Описание
Симистор BT136-600E от WEIDA — это триак с током 4 А и напряжением до 600 В. Компонент доступен в корпусах TO-220, TO-252 и SOT-82 для монтажа в отверстия или на поверхность. Подходит для управления нагрузками в бытовой технике и промышленной автоматике.
Технические характеристики
| Тип | Triac |
| Dv dt min | 50 V/µs |
| Артикул | BT136-600E |
| Тип монтажа | [ "THT", "SMD" ] |
| Peak gate power | 5W |
| Dimensions to 126 | { "max_mm": { "A": 7.8, "B": 11.2, "C": 16.3, "D": 4.1, "E": 1.47, "F": 0.86, "G": 2.29, "H": 2.9, "K": 0.6 }, "min_mm": { "A": 7.4, "B": 10.6, "C": 15.3, "D": 3.9, "E": 1.17, "F": 0.66, "G": 2.29, "H": 2.5, "K": 0.45 } } |
| Peak gate current | 2A |
| Available packages | [ "TO-220B", "TO-220C", "TO-252-4R", "TO-126", "TO-202-3", "SOT-82" ] |
| Dimensions to 220c | { "max_mm": { "A": 4.5, "B": 0.9, "C": 0.6, "D": 9.9, "E": 10.3, "F": 6.9, "G": 2.54, "H": 29.8, "C2": 1.32, "C3": 2.6, "L1": 3.39, "L2": 1.7, "L3": 2.95, "Φ": 3.6 }, "min_mm": { "A": 4.3, "B": 0.7, "C": 0.45, "D": 8.9, "E": 9.9, "F": 6.3, "G": 2.54, "H": 28, "C2": 1.23, "C3": 2.2, "L1": 3.39, "L2": 1.14, "L3": 2.65, "Φ": 3.6 } } |
| Dimensions to 202 3 | { "max_mm": { "A": 9.9, "C": 7.6, "D": 11.5, "F": 2.5, "H": 0.55, "J": 1.9, "M": 4.7, "N": 2.54, "O": 1.5, "P": 0.8 }, "min_mm": { "A": 9.3, "C": 7, "D": 10.5, "F": 1.5, "H": 0.45, "J": 1.5, "M": 4.4, "N": 2, "O": 1.2, "P": 0.6 } } |
| Holding current max | 20mA |
| Dimensions to 252 4r | { "max_mm": { "A": 2.4, "B": 0.86, "C": 0.58, "D": 6.3, "E": 6.8, "G": 4.772, "H": 10.4, "L": 1.21, "A2": 0.1, "B2": 5.46, "C2": 0.58, "D1": 5.3, "E1": 4.63, "L2": 1.65 }, "min_mm": { "A": 2.2, "B": 0.66, "C": 0.46, "D": 5.9, "E": 6.4, "G": 4.372, "H": 9.8, "L": 1.09, "A2": 0, "B2": 5.1, "C2": 0.44, "D1": 5.3, "E1": 4.63, "L2": 1.35 } } |
| On state voltage max | 1.7V |
| Rms on state current | 4A |
| Gate trigger voltage max | 1.3V |
| Gate trigger voltage min | 0.2V |
| I2t value for fusing 10ms | 3.1 A²s |
| Диап. темп. хр. | -40~150°C |

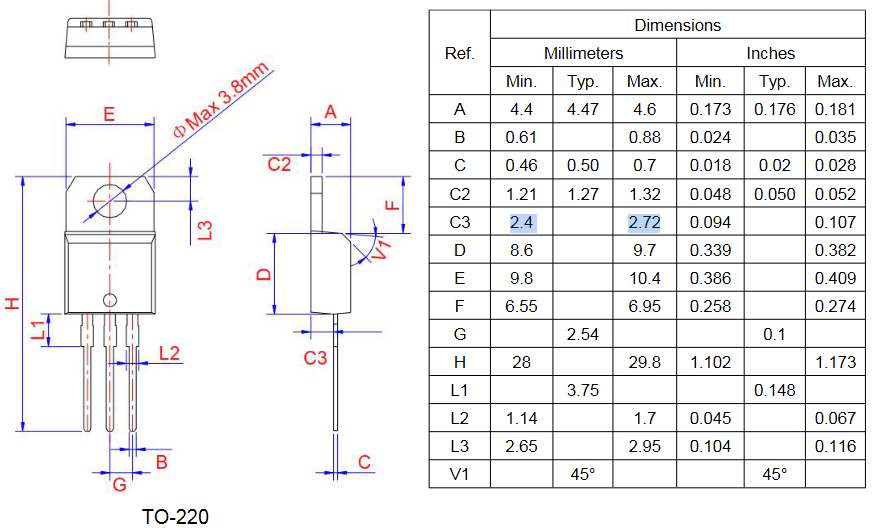

| Dimensions to 220b non ins | { "max_mm": { "A": 4.6, "B": 0.88, "C": 0.7, "D": 9.7, "E": 10.4, "F": 6.95, "G": 2.54, "H": 29.8, "C2": 1.32, "C3": 2.72, "L1": 3.75, "L2": 1.7, "L3": 2.95 }, "min_mm": { "A": 4.4, "B": 0.61, "C": 0.46, "D": 8.6, "E": 9.8, "F": 6.55, "G": 2.54, "H": 28, "C2": 1.21, "C3": 2.4, "L1": 3.75, "L2": 1.14, "L3": 2.65 } } |
| Диапазон темп. перехода | -40~125°C |
| Average gate power dissipation | 0.5W |
| Latching current quadrant 2 max | 35mA |
| Off state leakage current 25°C | 5µA |
| Повторяющееся импульсное обратное напряжение | 600V |
| Off state leakage current 125°C | 0.5mA |
| Repetitive peak off state voltage | 600V |
| Gate trigger current quadrant 4 max | 25mA |
| Latching current quadrant 1 3 4 max | 20mA |
| Gate trigger current quadrant 1 2 3 max | 10mA |
| Non repetitive surge peak on state current | 25A |
| Thermal resistance junction to case to 220c | 2.6 °C/W |
| Thermal resistance junction to case to 202 3 | 4.0 °C/W |
| Thermal resistance junction to case to 252 4r | 2.8 °C/W |
| Thermal resistance junction to case to 126 sot 82 | 3.7 °C/W |
| Thermal resistance junction to case to 220b non ins | 2.6 °C/W |
| Critical rate of rise of on state current quadrant 4 | 10 A/µs |
| Critical rate of rise of on state current quadrant 1 2 3 | 50 A/µs |
