Токоизмерительные клещи, постоянный и переменный ток 1000А
У поставщика
ПроизводительAPPA
У поставщиков
3 шт.
Цены поставщиков
Склад 13
В наличии:3 шт
Срок поставки: до недели
| Кол-во, шт. | Цена, ₽ |
|---|---|
| от 1 | 7 973,56 |
| от 2 | 7 888,05 |
| от 3 | 7 790,15 |
| от 4 | 7 697,62 |
| от 5 | 7 599,73 |
Описание

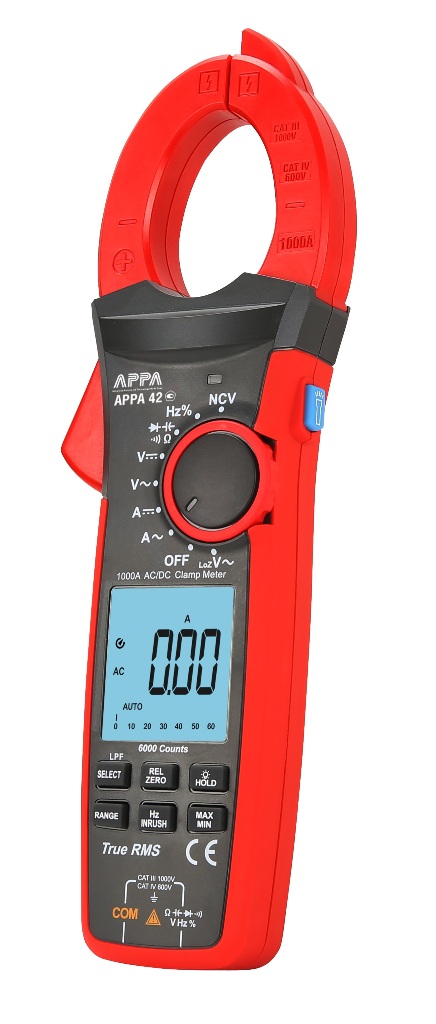

Токоизмерительные клещи APPA 42 для постоянного и переменного тока до 1000 А. Прибор внесен в Госреестр средств измерений, что гарантирует точность показаний. Подходит для профессионального обслуживания промышленного оборудования и силовых сетей.
Технические характеристики
| Ncv | 2 modes 100V and 220V |
| Hold | Да |
| Вес | 447g |
| Дисплей | Character TFT, 4 digits |
| Min max | Да |
| True rms | Да |
| Подсветка | Да |
| Auto range | Да |
| Размеры | 272 x 81 x 43.5mm |
| Power supply | 3 x 1.5V AAA |
| Название продукта | APPA 42 |
| Тип продукта | Токоизмерительные клещи |
| Relative mode | Да |
| Safety rating | CAT III 1000V / CAT IV 600V |
| Auto power off | 15min |
| Drop protection | 1m |
| Диап. частот | 10.0Hz to 1.0MHz |
| Transducer type | Hall effect sensor |
| Continuity range | 600Ohm |
| Diode pn voltage | 0.5-0.8V |
| Diode test range | 6V |
| Duty cycle range | 10-90% |
| Measurement rate | 3 measurements/s |
| Ac current ranges | 60A, 600A, 1000A |
| Ac voltage ranges | 6V, 60V, 600V, 1000V |
| Dc current ranges | 60A, 600A, 1000A |
| Dc voltage ranges | 600mV, 6V, 60V, 600V, 1000V |
| Max display count | 6000 |
| Max wire diameter | 42mm |
| Resistance ranges | 600Ohm, 6kOhm, 60kOhm, 600kOhm, 6MOhm, 60MOhm |
| Темп. диапазон | -40 to 300°C; 300 to 1000°C |
| Thermocouple type | K |
| Capacitance ranges | 60nF, 600nF, 6uF, 60uF, 600uF, 6mF, 60mF |
| Frequency accuracy | ±(0.1% + 3 digits) |
| Ac current accuracy | ±(2.0% + 9 digits) to 60A; ±(2.0% + 5 digits) to 1000A |
| Ac voltage accuracy | ±(1.2% + 3 digits) to 60V; ±(1.0% + 8 digits) to 1000V |
| Dc current accuracy | ±(2.0% + 5 digits) to 1000A |
| Dc voltage accuracy | ±(0.8% + 3 digits) to 600mV; ±(0.5% + 5 digits) to 1000V |
| Duty cycle accuracy | ±(2.6% + 7 digits) |
| Защита от перегр. | Да |
| Resistance accuracy | ±(1.0% + 3 digits) to 600Ohm; ±(1.0% + 2 digits) to 600kOhm; ±(2.0% + 8 digits) to 60MOhm |
| Ac current bandwidth | 40-400Hz |
| Ac voltage bandwidth | 40-400Hz |
| Capacitance accuracy | ±(4.0% + 25 digits) to 60nF; ±(4.0% + 5 digits) to 100uF; >100uF to 60mF not specified |
| Continuity buzzer on | ≤30Ohm |
| Frequency resolution | 0.1% |
| Условия эксплуатации | 5-40°C, RH ≤75% |
| Точность температуры | ±(1.0% + 20 digits) to 300°C; ±(1.0% + 2 digits) to 1000°C |
| Примечание | Госреестр СИ |
| Ac current resolution | 0.01A, 0.1A, 1A |
| Ac voltage loz ranges | 600V, 1000V |
| Ac voltage lpf ranges | 600V, 1000V |
| Ac voltage resolution | 0.001V, 0.01V, 0.1V, 1V |
| Continuity buzzer off | ≥70Ohm |
| Continuity resolution | 0.1Ohm |
| Dc current resolution | 0.01A, 0.1A, 1A |
| Dc voltage resolution | 0.1mV, 1mV, 10mV, 0.1V, 1V |
| Diode test resolution | 0.001V |
| Inrush current ranges | 60A, 600A, 1000A |
| Low battery indicator | Да |
| Resistance resolution | 0.1Ohm, 0.001kOhm, 0.01kOhm, 0.1kOhm, 0.001MOhm, 0.01MOhm |
| Capacitance resolution | 0.01nF, 0.1nF, 0.001uF, 0.01uF, 0.1uF, 0.001mF, 0.01mF |
| Temperature resolution | 0.1°C, 1°C |
| Ac voltage loz accuracy | ±(2.0% + 5 digits) |
| Ac voltage lpf accuracy | ±(2.0% + 5 digits) |
| Inrush current accuracy | ±(10% + 10 digits) |
| Inrush measurement time | 100ms |
| Тип упаковки | Штучный товар |
| Ac voltage loz bandwidth | 40-400Hz |
| Ac voltage lpf bandwidth | 40-200Hz |
| Flex loop current ranges | 30A, 300A, 3000A |
| Ac voltage loz resolution | 0.1V, 1V |
| Ac voltage lpf resolution | 0.1V, 1V |
| Frequency input amplitude | 250mV to 20V RMS |
| Inrush current resolution | 0.01A, 0.1A, 1A |
| Ac voltage input impedance | ≥10MOhm |
| Dc voltage input impedance | ≥10MOhm |
| Diode open circuit voltage | 3.0V DC |
| Duty cycle input amplitude | 2Vpp to 20Vpp |
| Flex loop current accuracy | ±(10% + 10 digits) |
| Flex loop measurement time | 100ms |
| Flex loop current resolution | 0.01A, 0.1A, 1A |
| Ac voltage loz input impedance | 20kOhm |
| Ac voltage lpf input impedance | ≥10MOhm |
| Ac voltage loz measurement time | 30s |
| Ac voltage lpf filter frequency | 2.5kHz at -3dB |
