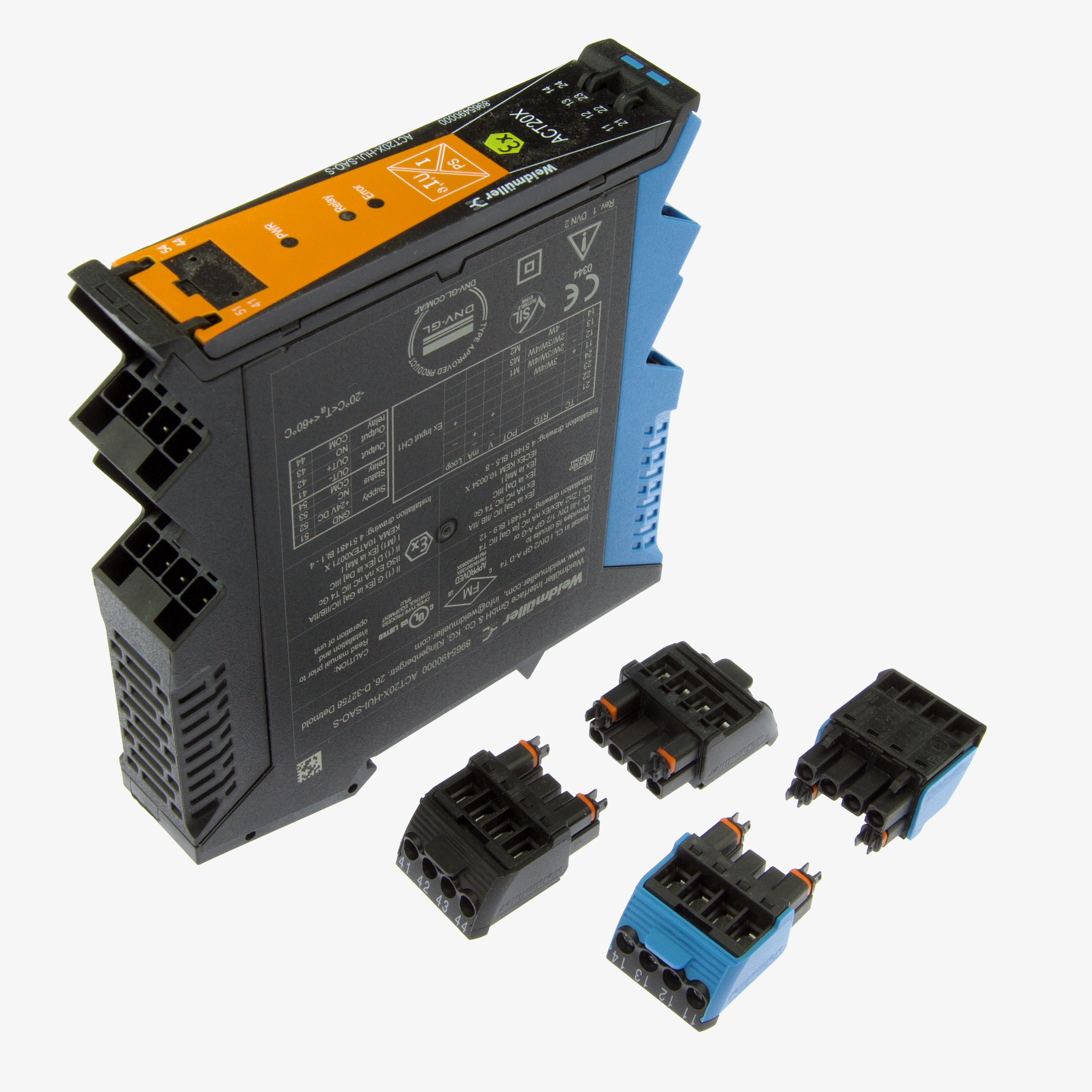

Коммутирующий усилитель 8965490000 ACT20X-HUI- SAO-S
В наличии
На своём складе
3 шт.
Норм. уп.: 1
Цены (собственный склад)
| Кол-во, шт. | Цена, ₽ |
|---|---|
| от 1 | 3 535,55 |
| от 4 | 3 430,01 |
| от 8 | 3 377,24 |
| от 15 | 3 245,32 |
Технические характеристики
| MTBF | 74 years |
| Тип | ACT20X-HUI-SAO-S |
| Глубина | 113.6 mm |
| Ширина | 22.5 mm |
| Высота | 119.2 mm |
| Tproof | 4 years |
| Влажность | 0...95% (no condensation) |
| Ex marking | II (1) G [Ex ia Ga] IIC/IIB/IIA, I (M1) [Ex ia Ma] I, II (1) G [Ex ia Ga] IIC, II (1) D [Ex ia Da] IIIC |
| Нетто вес | 202 g |
| Demand mode | High Demand rate 3000 s |
| Описание | Ex universal measurement isolating transformer and trip amplifier |
| Ex power p0 | 40 mW |
| Тип выхода | active or passive |
| Номер заказа | 8965490000 |
| Sensor types | PT10, PT20, PT50, PT100, PT250, PT300, PT400, PT500, PT1000, Ni50, Ni100, Ni120, Ni1000, Thermocouples B, E, J, K, N, R, S, T, L, U, Potentiometer 10 Ω…10 kΩ, Resistance 0 - 12 kΩ |
| Sil category | SIL 2 |
| Wire awg max | AWG 12 |
| Wire awg min | AWG 26 |
| Станд. ЭМС | DIN EN 61326, NE 21 |
| Ex current i0 | 18.4 mA |
| Ex voltage u0 | 8.7 V DC |
| Pfdavg 1 year | 2.82 x 10^-4 |
| Ном. напряжение | 300 V |
| Sensor supply | 21.4...16.5 V DC / 0...20 mA |
| Guarantee time | 3 years |
| Pfdavg 2 years | 4.63 x 10^-4 |
| Pfdavg 5 years | 1.00 x 10^-3 |
| Relay lifetime | 100000 times |
| Напряжение питания | 19.2…31.2 V DC |
| Alarm functions | Short circuit at input, Open circuit at input, No supply voltage, Device error |
| Тип соединения | Screw connection |
| Sil certificate | SIL 2 |
| Alarm output type | 1 NC (voltage-free) status relay |
| Потребляемая мощн. | ≤ 2.1 W |
| Степень защиты | IP20 |
| Диапазон фиксации макс. | 2.5 mm² |
| Диапазон фиксации мин. | 0.25 mm² |
| Напр. изоляции | 2.6 kV (input / output) |
| Степень загрязнения | 2 |
| Etim classification | EC002653 |
| Output signal limit | 3.8…20.5 mA / 0…20.5 mA (dependent on range) |
| Темп. хранения | -20 to 85 °C |
| Clamping range rated | 2.5 mm² |
| Configuration method | FDT/DTM software with configuration adapter CBX200 USB |
| Input current ranges | 0...20 mA, 4...20 mA |
| Input voltage ranges | 0…1 V DC, 0.2…1 V DC, 1…5 V DC, 0…(5)10 V, 2…10 V DC |
| Eclass classification | 27-21-01-20 |
| Installation location | Device installed in safe area, zone 2 |
| Раб. температура | -20 to 60 °C |
| Output current ranges | 0…20 / 4…20 / 20…0 / 20…4 mA |
| Макс. момент затяжки | 0.6 Nm |
| Мин. момент затяжки | 0.4 Nm |
| Load impedance current | ≤ 600 Ω |
| Safe state relay output | de-energized |
| Diagnostic test interval | 30 s |
| Input resistance current | 20 Ω + PTC 50 Ω @ 28 V |
| Input resistance voltage | >10 MΩ @ 600 mV, 2 MΩ |
| Mean time to repair mttr | 24 h |
| Temperature input ranges | PT100: -200…+850 °C, PT200: -200…+850 °C, PT1000: -200…+850 °C, NI100: -60…+250 °C, Ni120: -80…+320 °C, NI1000: -60…+250 °C, B: +100…+1820 °C, E: -100…+1000 °C, J: -100…+1200 °C, K: -180…+1372 °C, L: -200…+900 °C, N: -180…+1300 °C, R: -50…+1760 °C, S: -50…+1760 °C, T: -200…+400 °C, U: -200…+600 °C, W3: 0…+2300 °C, W5: 0…+2300 °C, LR: -200…+800 °C |
| Digital output relay type | 1 NO |
| Safe failure fraction sff | 93% |
| Safe state analogue output | ≤ 3.6 mA or ≥ 21 mA |
| Demand response time signal | < 0.5 s (opto output) |
| Output current configurable | 0…23 mA |
| Hardware fault tolerance hft | 0 |
| Influence of load resistance | ≤ 0.01% of span / 100 Ω |
| Alarm output power rating safe | ≤ 62.5 VA / 32 W |
| Alarm output power rating zone2 | ≤ 16 VA / 32 W |
| Intrinsically safe circuit type | active or passive |
| Demand response time temperature | < 1.1 s (opto output) |
| Digital output power rating safe | ≤ 500 VA / 60 W |
| Digital output power rating zone2 | ≤ 16 VA / 32 W |
| Line resistance measuring circuit | ≤ 50 Ω |
| Probability of failure per hour pfh | 4.33 x 10^-8 h^-1 |
| Alarm output continuous current safe | ≤ 0.5 A AC / 0.3 A DC |
| Alarm output continuous current zone2 | ≤ 0.5 A AC / 1 A DC |
| Digital output continuous current safe | ≤ 2 A AC/DC |
| Digital output continuous current zone2 | ≤ 2 A AC/DC (Zone 2 area) |
| Total failure rate safe detected lambda sd | 0 FIT |
| Alarm output nominal switching voltage safe | ≤ 125 V AC / 110 V DC |
| Alarm output nominal switching voltage zone2 | ≤ 32 V AC / 32 V DC |
| Total failure rate safe undetected lambda su | 278 FIT |
| Digital output nominal switching voltage safe | ≤ 250 V AC / 30 V DC |
| Digital output nominal switching voltage zone2 | ≤ 32 V AC / 32 V DC |
| Total failure rate dangerous detected lambda dd | 352 FIT |
| Total failure rate dangerous undetected lambda du | 43 FIT |
