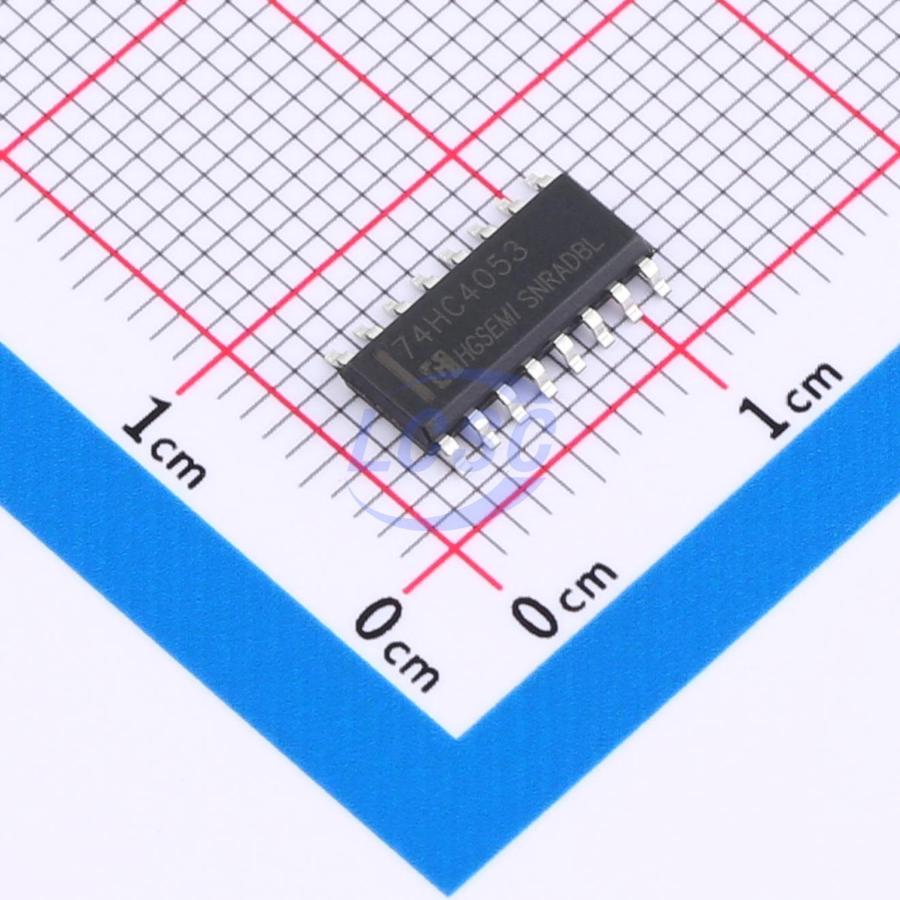

Тройной двухканальный мультиплексор/демультиплексор [SOP-16]
У поставщика
ПроизводительHGSEMI
У поставщиков
1 600 шт.
Норм. уп.: 200
Цены поставщиков
Склад 12
В наличии:1 600 шт
Срок поставки: до недели
Норм. уп.: 200
Минимальная партия: 2000 шт
| Кол-во, шт. | Цена, ₽ |
|---|---|
| от 1 | 11,39 |
| от 200 | 8,83 |
Технические характеристики
| Шаг | 1.27mm |
| Тип монтажа | SMD |
| Кол-во выводов | 16 |
| Crosstalk 5v | 0.25% |
| Crosstalk 9v | 0.04% |
| Логическое семейство | 74HC |
| Тип упаковки | SOP-16 |
| Static current | 2μA |
| Рассеиваемая мощность | 500mW |
| Analog voltage range | VEE to VDD |
| On resistance 5v max | 2500Ω |
| On resistance 9v max | 245Ω |
| Диапазон питания | 3V to 9V |
| Bandwidth on state 5v | 13MHz |
| Bandwidth on state 9v | 40MHz |
| Bandwidth off state 9v | 1MHz |
| Voltage difference max | 9V |
| On resistance 5v typical | 350Ω |
| On resistance 9v typical | 80Ω |
| Package dimensions width | 5.8mm to 6.2mm |
| Input leakage current low | 1μA |
| Package dimensions height | 1.35mm to 1.55mm |
| Package dimensions length | 9.8mm to 10.0mm |
| Диап. темп. хр. | -65°C to +150°C |
| Input leakage current high | 1μA |
| On resistance 5v 0v typical | 115Ω |
| On resistance 9v 0v typical | 50Ω |
| Диап. раб. темп. | -40°C to +85°C |
| On resistance 5v max typical | 120Ω |
| On resistance 9v max typical | 65Ω |
| Описание (англ.) | 3/6 2V~5.5V SOP-16 Signal Switches, Multiplexers, Decoders RoHS |
| Off state leakage current all | 1000nA |
| Output enable time low 5v max | 565ns |
| Output disable time low 5v max | 400ns |
| Output enable time high 5v max | 525ns |
| Output disable time high 5v max | 400ns |
| Off state leakage current single | 200nA |
| Output enable time low 5v typical | 280ns |
| Output disable time low 5v typical | 200ns |
| Output enable time high 5v typical | 260ns |
| Propagation delay an to vos 5v max | 400ns |
| Propagation delay an to vos 9v max | 170ns |
| Output disable time high 5v typical | 200ns |
| Propagation delay vis to vos 5v max | 20ns |
| Propagation delay vis to vos 9v max | 10ns |
| Propagation delay an to vos 5v typical | 200ns |
| Propagation delay an to vos 9v typical | 85ns |
| Propagation delay vis to vos 5v typical | 10ns |
| Propagation delay vis to vos 9v typical | 5ns |
Описание
Тройной двухканальный мультиплексор/демультиплексор [SOP-16]
