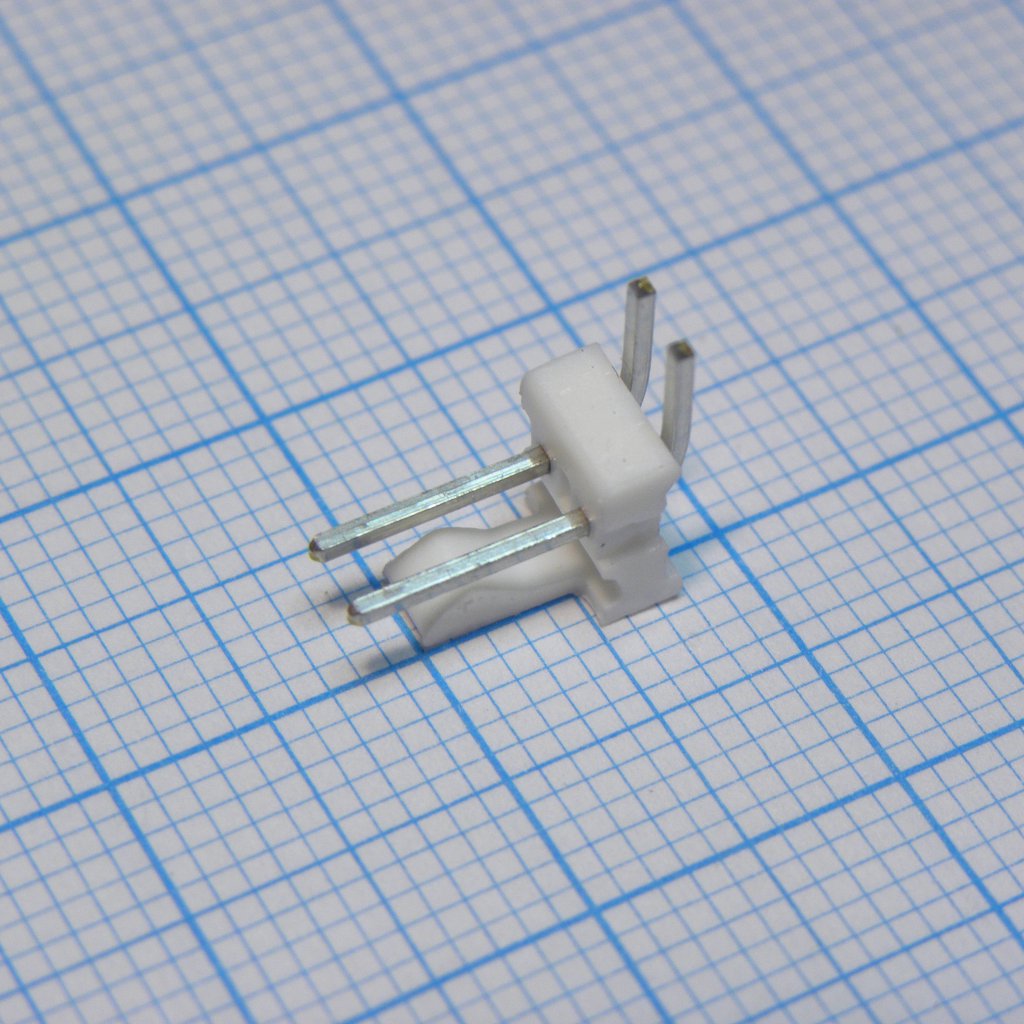

Разъем сигнальный 640457-2
У поставщика
У поставщиков
7 061 шт.
Норм. уп.: 3000
Цены поставщиков
Склад 13
В наличии:7 061 шт
Срок поставки: до недели
Норм. уп.: 3000
Минимальная партия: 124 шт
| Кол-во, шт. | Цена, ₽ |
|---|---|
| от 1 | 5,58 |
| от 108 | 5,11 |
| от 215 | 4,62 |
| от 430 | 4,14 |
| от 860 | 3,77 |
Описание
Разъем сигнальный 640457-2 от TE Connectivity — надежный компонент для передачи сигналов в электронных цепях. Отличается высокой помехозащищенностью и стабильностью контакта. Применяется в промышленной автоматике и контрольно-измерительном оборудовании.
Технические характеристики
| Тип | сигнальные |
| Шаг | .100 in (2.54 mm) |
| Шкала | 8:1 |
| Лист | 1 |
| Серия | MTA 100 |
| Ревизия | S3 |
| Код CAGE | 00779 |
| Post size | .025 ±.001 square |
| Описание | MTA 100 HDR ASSY, FRICTION LOCK, NOTCHED, .025 SQUARE RIGHT ANGLE POST, TIN PLATED |
| Dimension A | .225 ±.015 in |
| Dimension B | .295 ±.015 in |
| Dimension C | .305 ±.015 in |
| Dimension D | .130 ±.010 in |
| Dimension E | .140 ±.015 in |
| Dimension F | .050 ±.010 in |
| Dimension G | .100 in typ |
| Dimension H | .020 in max |
| Dimension J | .125 in ref |
| Dimension K | .225 in |
| Dimension L | .310 in |
| Dimension M | .295 in |
| Dimension N | .400 in |
| Dimension P | .300 in |
| Dimension Q | .200 in |
| Dimension R | .160 in |
| Dimension S | .140 in |
| Dimension T | .125 in |
| Dimension U | .120 in |
| Dimension V | .110 in |
| Dimension W | .100 in |
| Dimension X | .063 in |
| Dimension Y | .050 in |
| Dimension Z | .040 in |
| Артикул | 640457-2 |
| Dimension AA | .035 in |
| Dimension AB | .032 in |
| Dimension AC | .025 in |
| Dimension AD | .020 in |
| Dimension AE | .015 in |
| Dimension AF | .010 in |
| Dimension AG | .005 in |
| Dimension AH | .003 in |
| Dimension AI | .001 in |
| Post plating | Tin |
| Тип монтажа | THT |
| Толщина ПП | .063 in (1.60 mm) |
| Plastic burrs | permitted within maximum tolerance envelope |
| Plastic flash | permitted in specified area |
| Post material | Медный сплав |
| Дата редакции | 18MAY2016 |
| Номер чертежа | C-640457 |
| Post bend test | Two 90° bends against extrusion without breaking |
| Undersized hole | one hole may be .035/.032 in for wave soldering retention |
| Материал корпуса | Thermoplastic polyester 94V-0 (natural) |
| Post axial force | 13 N (3 lbs) min in both directions |
| Length 2 positions | 2.800 in (71.12 mm) |
| Length 3 positions | 2.700 in (68.58 mm) |
| Length 4 positions | 2.600 in (66.04 mm) |
| Length 5 positions | 2.500 in (63.50 mm) |
| Length 6 positions | 2.400 in (60.96 mm) |
| Length 7 positions | 2.300 in (58.42 mm) |
| Length 8 positions | 2.200 in (55.88 mm) |
| Length 9 positions | 2.100 in (53.34 mm) |
| Solderability spec | AMP 109-11-2 |
| Length 10 positions | 2.000 in (50.80 mm) |
| Length 11 positions | 1.900 in (48.26 mm) |
| Length 12 positions | 1.800 in (45.72 mm) |
| Length 13 positions | 1.700 in (43.18 mm) |
| Length 14 positions | 1.600 in (40.64 mm) |
| Length 15 positions | 1.500 in (38.10 mm) |
| Length 16 positions | 1.400 in (35.56 mm) |
| Length 17 positions | 1.300 in (33.02 mm) |
| Length 18 positions | 1.200 in (30.48 mm) |
| Length 19 positions | 1.100 in (27.94 mm) |
| Length 20 positions | 1.000 in (25.40 mm) |
| Length 21 positions | .900 in (22.86 mm) |
| Length 22 positions | .800 in (20.32 mm) |
| Length 23 positions | .700 in (17.78 mm) |
| Length 24 positions | .600 in (15.24 mm) |
| Length 25 positions | .500 in (12.70 mm) |
| Length 26 positions | .400 in (10.16 mm) |
| Length 27 positions | .300 in (7.62 mm) |
| Length 28 positions | .200 in (5.08 mm) |
| Кол-во позиций | 2 |
| Ориентация монтажа | right_angle |
| Pin burr vertical max | .005 in |
| Mating dimension cst100 | .110-.120 |
| Mating dimension mta100 | .110-.160 |
| Pin burr horizontal max | .003 in |
| Recommended mounting hole | .040/.035 in (1.02/0.89 mm) |
| Тип разъема | сигнальные |
