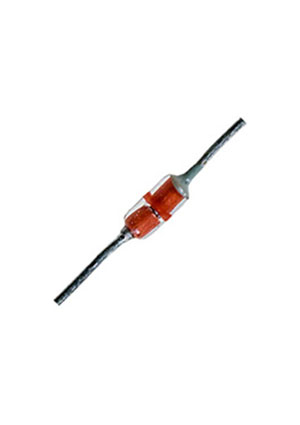

2С107А, стекло (90-93г)
У поставщика
ПроизводительНЗПП
У поставщиков
670 шт.
Норм. уп.: 100
Цены поставщиков
Склад 12
В наличии:670 шт
Срок поставки: до недели
Норм. уп.: 100
Минимальная партия: 200 шт
| Кол-во, шт. | Цена, ₽ |
|---|---|
| от 1 | 16,56 |
| от 100 | 9,32 |
| от 1 000 | 5,18 |
Технические характеристики
| Масса | ≤1g |
| Корпус | metal-glass case with flexible leads |
| Тип монтажа | THT |
| Описание | Silicon alloy low-power stabistor (voltage reference diode) |
| Тип компонента | 2С107А |
| Lead bend radius | ≥1.5 mm |
| Рассеиваемая мощность | 125 mW |
| Долговременная стабильность | -3.2 to +3.2% |
| Reverse current at 1V | ≤1.5 µA |
| Maximum reverse voltage | 1 V |
| Tensile force anode lead | ≤9.8 N |
| Cathode connected to case | Да |
| Tensile force cathode lead | ≤19.6 N |
| Диап. раб. темп. | -60 to +125 °C |
| Lead bend distance from body | ≥2 mm |
| Soldering distance from body | ≥5 mm |
| Maximum stabilization current | 120 mA |
| Minimum stabilization current | 1 mA |
| Differential resistance at 1mA | ≤50 Ω |
| Soldering case temperature max | +125 °C |
| Stabilization voltage at 1mA max | 0.73V |
| Stabilization voltage at 1mA min | 0.53V |
| Series parallel connection allowed | Да |
| Stabilization voltage at 10mA 25C max | 0.77V |
| Stabilization voltage at 10mA 25C min | 0.63V |
| Differential resistance at 10mA 25C max | 7 Ω |
| Мощность рассеяния, Вт | 0.125 |
| Stabilization voltage at 10mA minus60C max | 1.05V |
| Stabilization voltage at 10mA minus60C min | 0.63V |
| Stabilization voltage at 10mA plus125C max | 0.77V |
| Stabilization voltage at 10mA plus125C min | 0.41V |
| Temperature coefficient voltage 30 to 125C | -0.34%/°C |
| Differential resistance at 10mA minus60C max | 7 Ω |
| Differential resistance at 10mA plus125C max | 11 Ω |
| Temperature coefficient voltage minus60 to 125C | -0.45 to -0.1 %/°C |
| Напряжение стабилизации, В | 0.7 |
