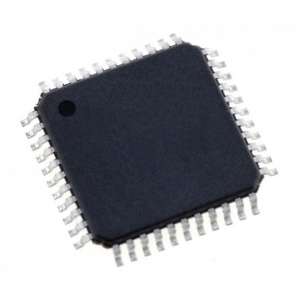

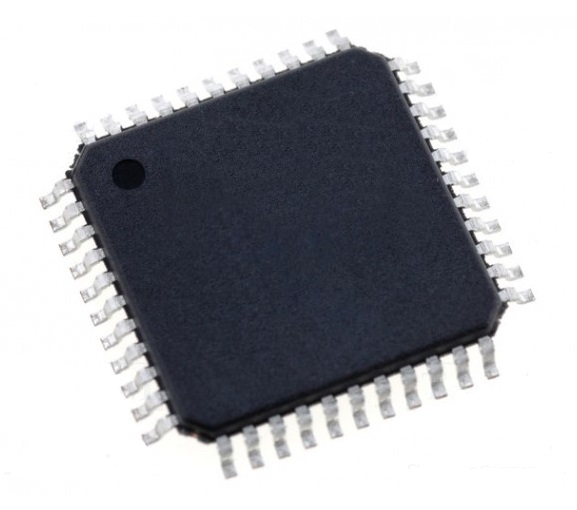

Микроконтроллер PIC18F4580-I/PT
У поставщика
У поставщиков
91 шт.
Норм. уп.: 160
Цены поставщиков
Склад 13
В наличии:91 шт
Срок поставки: до недели
Норм. уп.: 160
| Кол-во, шт. | Цена, ₽ |
|---|---|
| от 1 | 686,49 |
| от 4 | 650,21 |
| от 8 | 620,67 |
| от 16 | 598,72 |
| от 31 | 582,38 |
Описание
Микроконтроллер PIC18F4580-I/PT от Microchip выполнен в корпусе TQFP-44 для поверхностного монтажа. Работает при напряжении от 2,0 до 5,5 В, оснащён 10-битным АЦП, интерфейсами CAN, SPI, I2C и USART. Применяется в промышленной автоматике, системах управления и встраиваемой электронике.
Технические характеристики
| Icd | In-Circuit Debug via Two Pins |
| Pll | 4x Phase Lock Loop |
| Icsp | Single-Supply 5V In-Circuit Serial Programming via Two Pins |
| Mssp | Master Synchronous Serial Port |
| Usart | Enhanced Addressable USART |
| Серия | PIC18F2480/2580/4480/4580 |
| Таймеры | 4 |
| Выводы ввода/вывода | 36 |
| Корпус | TQFP-44 |
| Тип монтажа | SMD |
| Объем ОЗУ | 1536 bytes |
| Кол-во выводов | 44 |
| Модули CCP | 1 CCP + 1 ECCP (on 40/44-pin devices) |
| Описание | 28/40/44-Pin Enhanced Flash Microcontrollers with ECAN Technology, 10-Bit A/D and nanoWatt Technology |
| Mssp module | SPI (all 4 modes) and I2C master/slave |
| Артикул | PIC18F4580-I/PT |
| Счетчик таймера | 4 timers (typically Timer0,1,2,3) |
| Каналы АЦП | up to 11 |
| Eccp modules | 1 |
| Io pin count | 36 (typical for 44-pin variant) |
| Производитель | Microchip Technology Inc. |
| Usart module | Enhanced Addressable USART (RS-485, RS-232, LIN 1.3) |
| Crystal modes | 4 |
| Icd interface | In-Circuit Debug via 2 pins |
| Диапазон напряжений | 2.0V to 5.5V |
| Разрешение АЦП | 10-bit |
| Icsp interface | In-Circuit Serial Programming via 2 pins |
| Mssp protocols | 3-Wire SPI (all 4 modes), I2C Master and Slave |
| Pll multiplier | 4x |
| Flash retention | > 40 years |
| Usart protocols | RS-485, RS-232, LIN 1.3 |
| Adc channels max | 11 |
| Can bit rate max | 1 Mbps |
| Comparator count | 2 dual analog comparators with input multiplexing |
| Data eeprom size | 256 bytes |
| Eccp pwm outputs | 1, 2 or 4 |
| Частота АЦП | up to 100 ksps |
| Can specification | CAN 2.0B Active |
| Cpu frequency max | 40MHz |
| External rc modes | 2 |
| Self programmable | Да |
| Темп. диапазон | Industrial (-40°C to +85°C) |
| Analog comparators | 2 |
| Max clock with pll | 32MHz |
| Adc sample rate max | 100ksps |
| Can receive buffers | 2 |
| External interrupts | 3 |
| Hardware multiplier | 8 x 8 Single-Cycle |
| Power managed modes | Run, Idle, Sleep |
| Program memory type | Enhanced Flash |
| Supply current idle | 5.8µA typical |
| Can acceptance masks | 3 full 29-bit |
| Can transmit buffers | 3 |
| External clock modes | 2 |
| Supply current sleep | 0.1µA typical |
| Crystal frequency max | 40MHz |
| Data eeprom endurance | 1,000,000 erase/write cycles typical |
| Макс. рабочее напряжение | 5.5V |
| Мин. раб. напр. | 2.0V |
| Can acceptance filters | 16 full 29-bit |
| Io sink source current | 25mA/25mA |
| Power management modes | Run, Idle, Sleep |
| Ток сторожевого таймера | 2.1μA |
| Fail safe clock monitor | Да |
| Диап. раб. напр. | 2.0V to 5.5V |
| Supply current watchdog | 2.1µA typical |
| Extended instruction set | optional |
| Flash erase write cycles | 100,000 cycles typical |
| High current sink source | 25mA/25mA |
| External rc frequency max | 4MHz |
| Flash program memory size | 32KB |
| Idle mode current typical | 5.8μA |
| Interrupt priority levels | Да |
| Supply current timer1 osc | 1.1µA typical at 32kHz, 2V |
| Timer1 oscillator current | 1.1μA |
| Timer1 oscillator voltage | 2V |
| Watchdog timer period max | 131s |
| Watchdog timer period min | 41ms |
| Sleep mode current typical | 0.1μA |
| Flash data eeprom retention | > 40 Years |
| Диап. раб. темп. | -40°C to +85°C |
| Timer1 oscillator frequency | 32kHz |
| Watchdog timer period range | 41ms to 131s |
| External clock frequency max | 40MHz |
| Can programmable rx tx buffers | 6 |
| Data eeprom erase write cycles | 1000000 |
| Secondary oscillator frequency | 32kHz |
| Internal oscillator frequencies | 31kHz to 8MHz |
| Internal oscillator frequency max | 8MHz |
| Internal oscillator frequency min | 31kHz |
| Flash program memory erase write cycles | 100000 |
| Internal oscillator with pll frequency max | 32MHz |
